Price range: $431.36 through $1,613.32
The all-in-one Victron energy mounting system, now in a flat, low-profile standalone format. Save space and time on installation.
trekMount Flex Solo [Bracket Only] – wire up the system yourself on a bench with mounting holes and cable management already worked out.

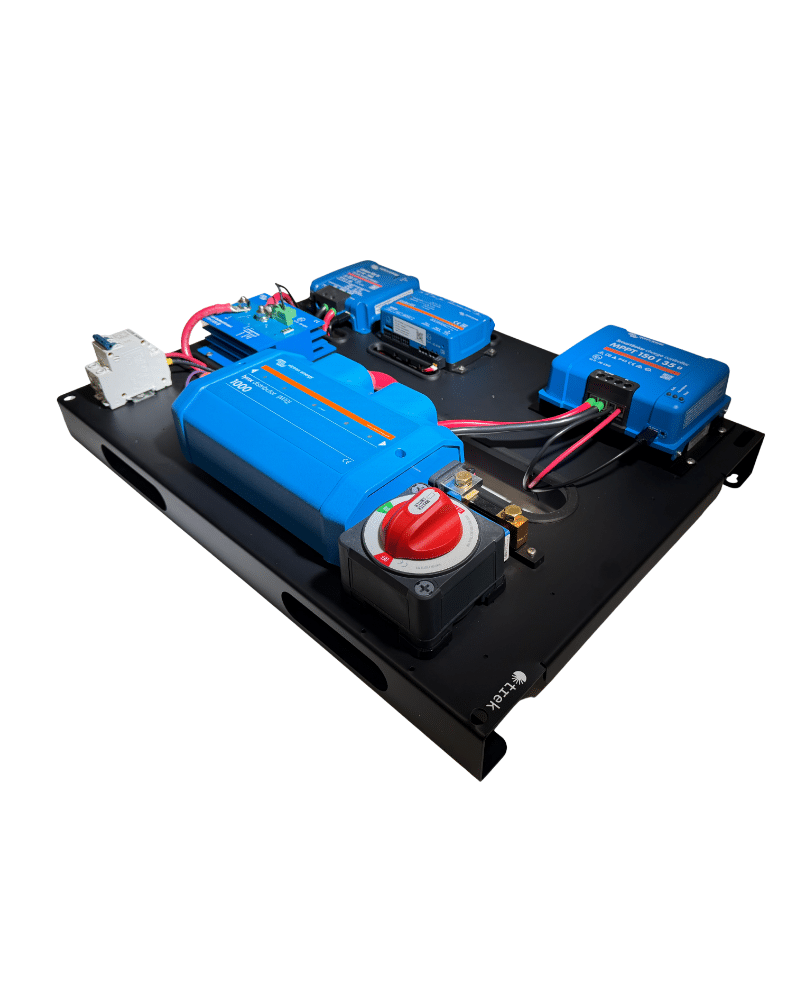

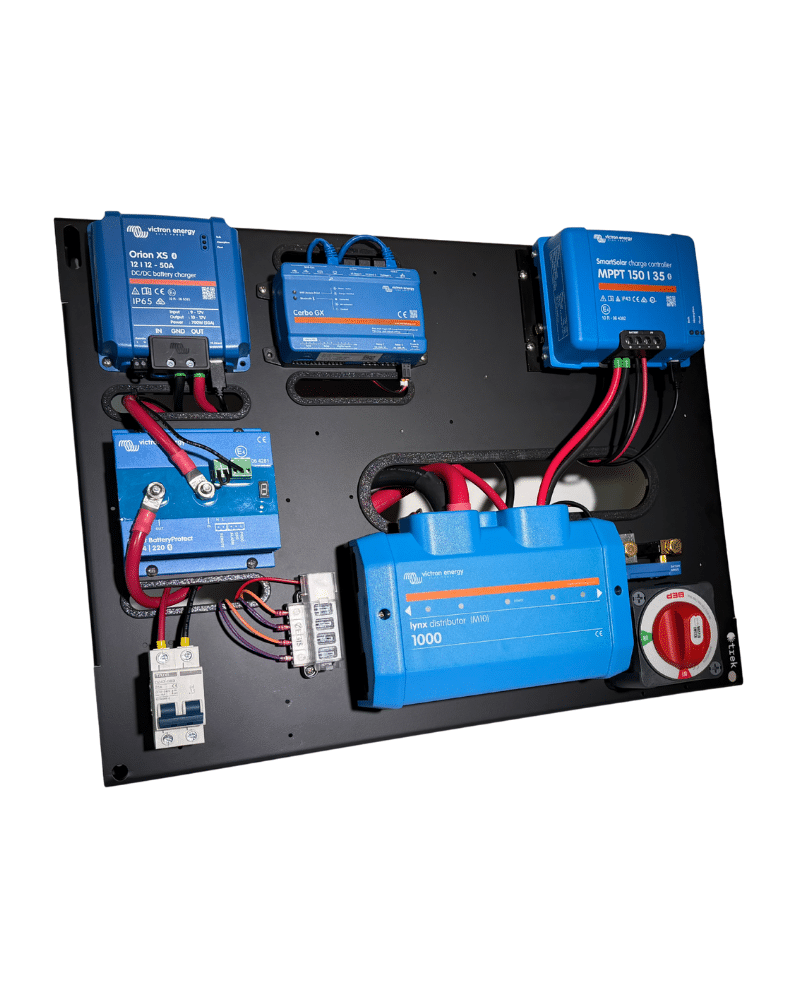

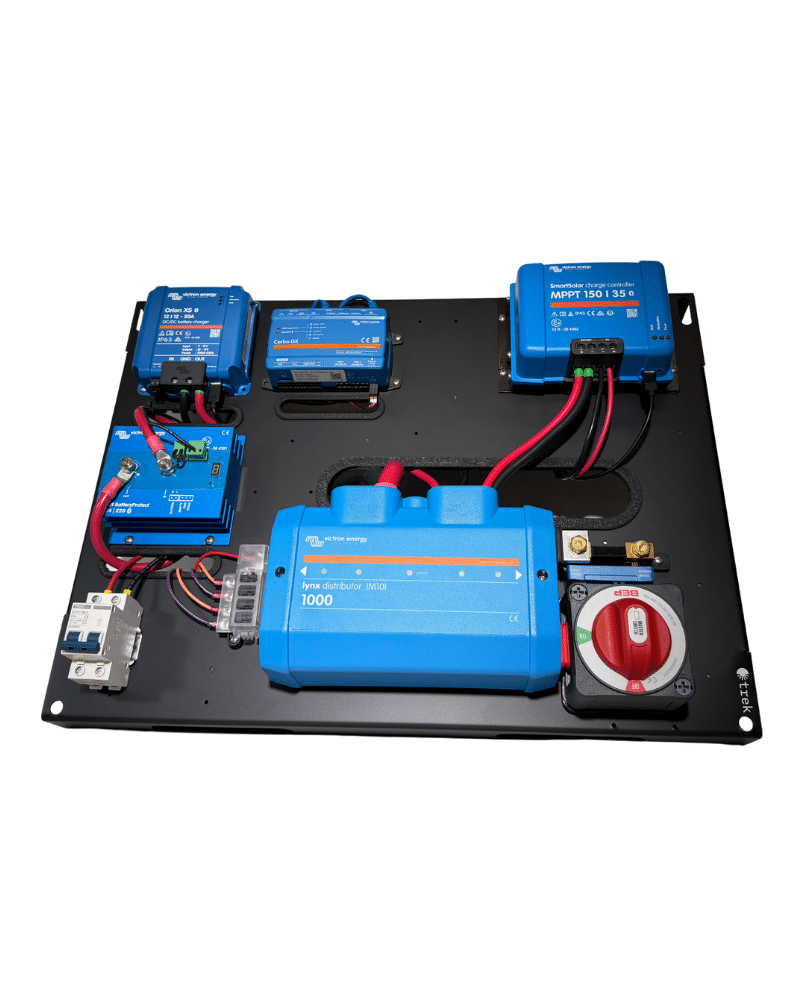

trekMount Flex Ready [Pre-Wired, Pre-Programmed, Tested] – the fastest, most user friendly Victron system available. Rapid-deploy. Plug & play. Quick-connect.
One mount, countless options.
trekMount Flex Ready (components purchased separately)
These are the components we’ll mount, wire and program (cables, terminals, and heat shrink included for all circuits):
x1 MPPT (all Victron models are compatible, excluding MPPT RS series)
x1 PV Disconnect
x1-2 Orion XS 12/12 50A DC-DC charger (Multiple can be stacked on top of one another with purchase of special mounting bracket)
x1 Lynx Distributor
x1 Lynx BMS 500A, or Lynx Clean Install Kit (w/ Disconnect Switch and Victron SmartShunt 300A or 500A)
x1 Cerbo GX
x1 BatteryProtect (all Victron models are compatible)
x1 Egis 6012 PowerPost Busbar
x1 Egis 8045 Blade Fuse Holder
x1 Lynx BMS Toggle Rocker Switch
All Victron Inverter/Chargers (12V, 24V or 48V)
Complete wiring diagram included
Note: At this time we are only able to mount components purchased from Trek Systems.
trekMount Flex Solo
A bracket to consolidate components and allow for a streamlined bench-top installation. Bring your own components, wire, lugs, etc.
We’ll supply:
A complete wiring diagram is included with trekMount Flex Ready, and available as an add-on with trekMount Flex Solo.
How it works
trekMount Flex does not include any of the primary energy system components. If you purchase these components with the trekMount, we’ll confirm that all are compatible before shipping your order. If a component is not currently compatible, we’ll send you an update to confirm that you can either A) drill your own holes on an open area of trekMount or B) install this component separately from trekMount (ie. on the wall).
| Weight | 18.4 lbs |
|---|---|
| Dimensions | Length: 25 in Width: 20 in Height: 2.25 in |
| Type | Solo (Bracket Only), Ready (Pre-Wired, Pre-Programmed & Tested) |
Camper van and specialty vehicle builders, RV OEMs, aftermarket service providers, and countless other professionals and enthusiasts expressed the desire to use Victron components on their platforms, but hesitated because of the time and expertise required for installation. This challenge – time and expertise required for installation – is what we aimed to solve. Space savings was a bonus.
trekMount Solo is a bracket with threaded mounting holes for all of the common components typically used in a Victron system. You tell us which components you’re using, we’ll show you where to mount them, and we’ll provide the mounting screws.
With smartly placed cable management anchors spread throughout the backside of the bracket, it’s easy to keep cable runs clean (even though they’ll be out of sight).
Cooling fans are included with trekMount Solo to keep the inverter mounted behind our bracket cool.
Instead of working inside a tightly cramped compartment, where fatigue sets in faster and mistakes become more common, trekMount Solo is designed to be wired on a bench.
Because trekMount fits around the inverter and allows you to use the space in front of the inverter, and on either side of the inverter more efficiently, the overall footprint of a system with trekMount can be significantly less than that seen with traditional installation methods.
trekMount Solo is the perfect middle ground for those who want an easier/faster/cleaner installation, but still desire to be deeply involved in the wiring, programming and final commissioning of the system.
trekMount Ready is the turn-key version. Everything mentioned with trekMount Solo still stands, with the addition of component installation, wiring, programming and full system testing – all completed and quality checked by our expert team in Denver, CO.
In addition to our off-the-shelf trekMount products, we also work with OEMs to design custom rapid-deploy solutions for fleet applications.
trekMount is a modular mounting system designed to make energy systems easier and faster to install.
trekMount is designed for RVs, camper vans, overland vehicles, speciality trailers, and other off grid or remote environments that may be exposed to harsh conditions.
Yes, trekMount was designed with Victron Energy components top of mind. Mounting holes are available for most Victron solar chargers, DC-DC chargers, the Lynx Distributor, Cerbo GX, SmartShunt, and many other commonly used components.
trekMount is designed to be easily installed by a single person. With all components mounted and wired, trekMount will typically weigh under 50 lbs (less than the MultiPlus 3K).
Step 1: Work with our team to determine which components are appropriate for your project, or inform us which components you’ve already chosen.
Step 2: We create a 3D mockup of your trekMount. This is where we confirm that all components will fit, and where they will be located on the bracket.
Step 3: Once you’ve accepted the mockup, we’ll either ship your tM Solo with all necessary mounting hardware, or we’ll get started on the production of your tM Ready.
Step 4: Our team will be available by email or phone should any questions come up during your trekMount / Victron installation.
