$490.18 – $1,833.31
The first all-in-one Victron energy mounting system. Save space and install with ease.
trekMount Solo [Bracket Only] – wire up the system yourself on a bench with mounting holes and cable management already worked out.

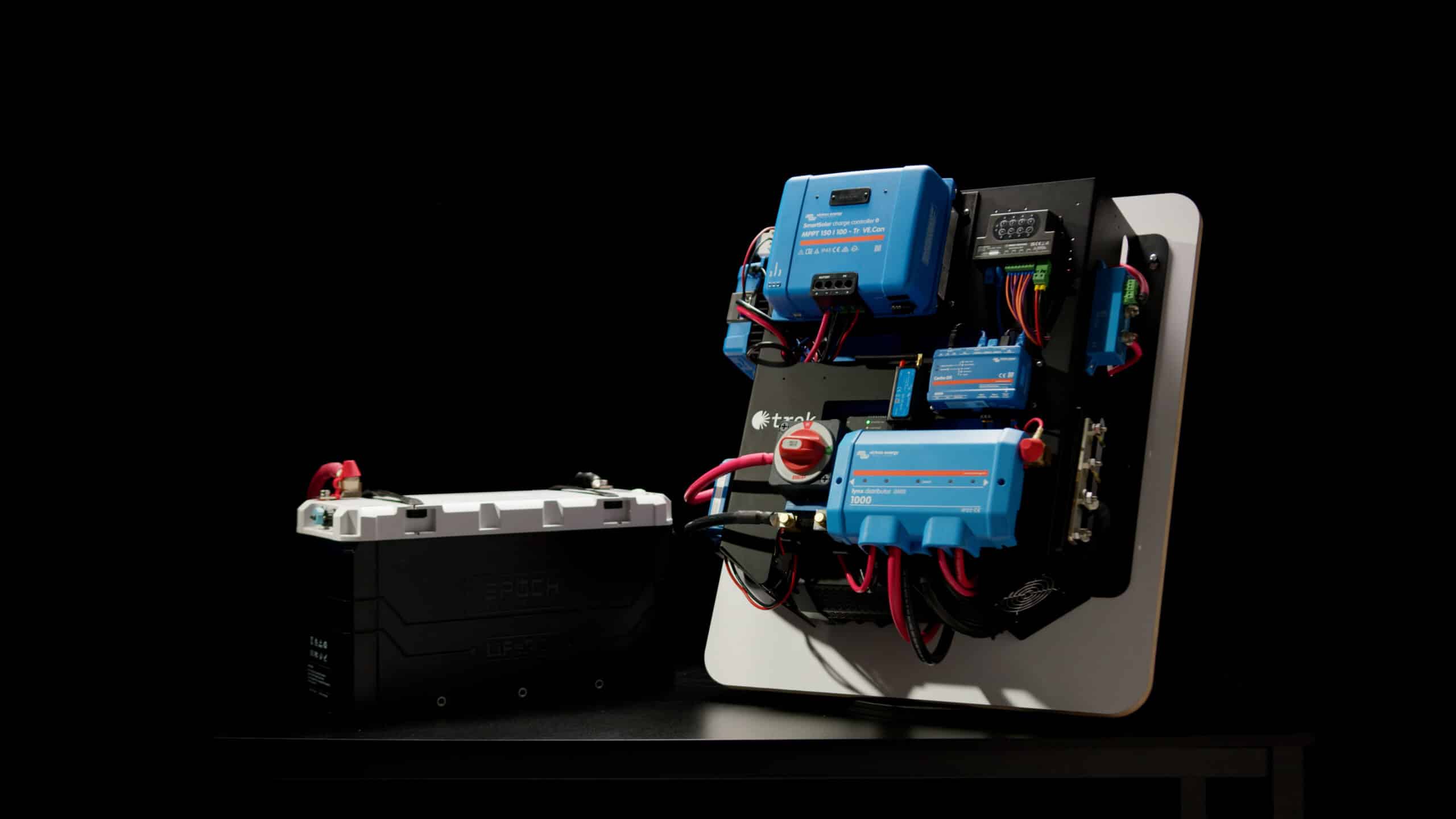

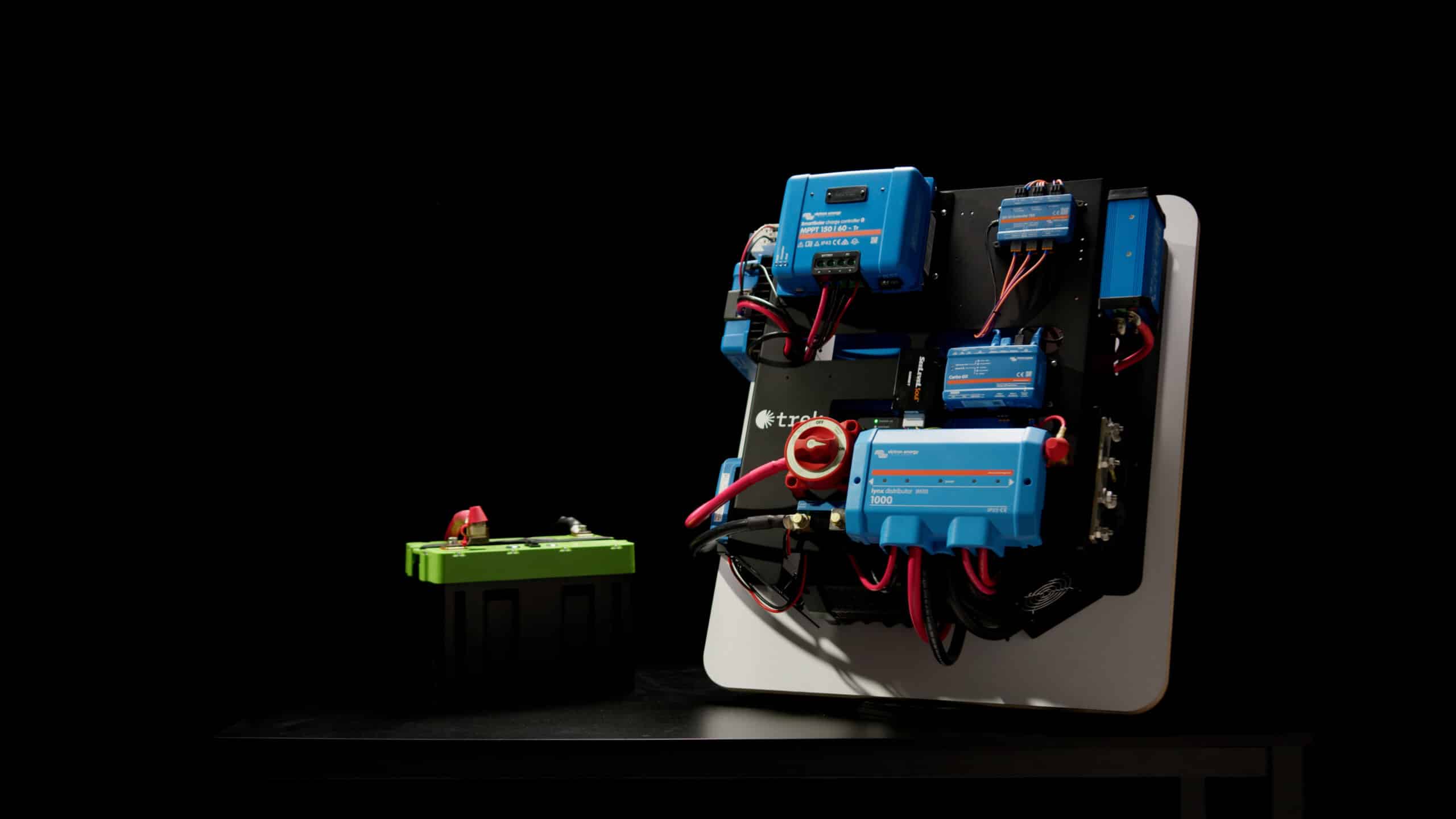

trekMount Ready [Pre-Wired, Pre-Programmed, Tested] – the fastest, most user friendly Victron system available. Rapid-deploy. Plug & play. Quick-connect.
One mount, countless options.
Note: Currently the trekMount is only designed for use with Victron Multiplus II 3000VA Inverter/Chargers.

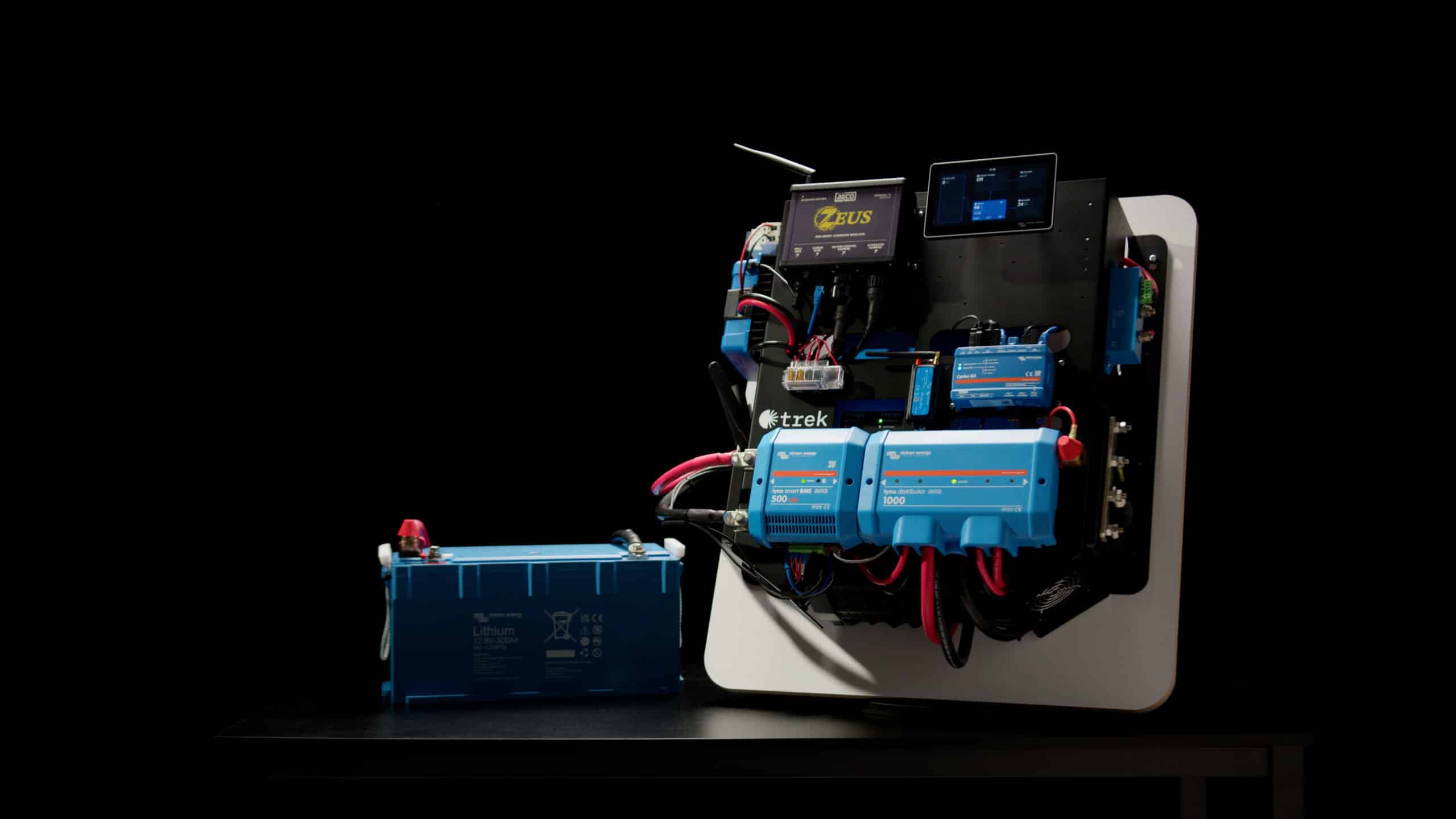

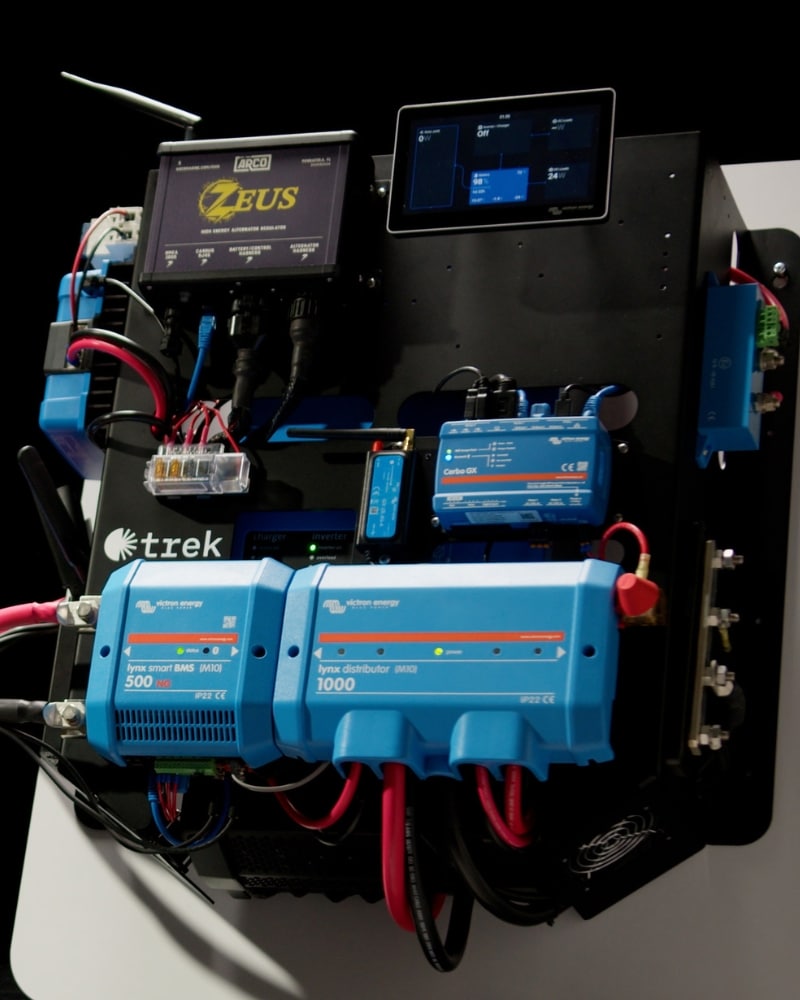

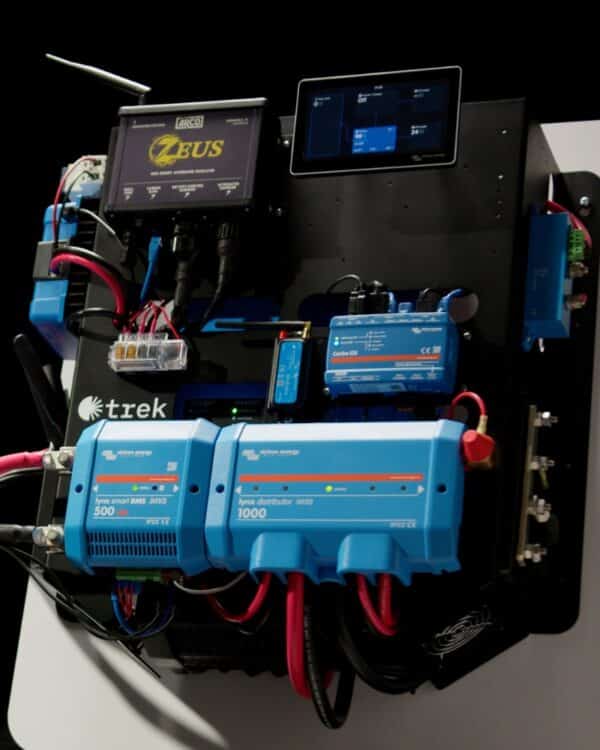

trekMount Ready (components purchased separately)
These are the components we’ll mount, wire and program (cables, terminals, and heat shrink included for all circuits):
x1 MPPT (all models are compatible)
x1 PV Disconnect
x1 DC-DC charger (all models are compatible)
x1 Lynx Distributor
x1 Lynx BMS or Clean Install Kit (w/ Disconnect Switch and SmartShunt)
x1 DC-DC step-down converter (for 24V or 48V systems)
x1 Cerbo GX
x1 GX Touch
x1 BatteryProtect (all models are compatible)
x1 MultiPlus-ll 3kVA (12V, 24V or 48V)
x2 Fans for Active Cooling (these turn on/off with the built-in inverter fans)
Complete wiring diagram included
Note: At this we are only able to mount components purchased from Trek Systems.
Optional add-ons:
x1 DC Fuse Block
x1 AC Input Breaker
x1 AC Distribution Panel
x1 Peplink BR1 Mobile Router + SIM install and configuration
x1 GX LTE 4G
x1 Arco Zeus High Energy Alternator Regulator
x1 GX I/O extender
x1 SeeLevel Soul Tank Monitoring Interface
Additional MPPTs
Additional DC-DC Chargers or Converters
trekMount Solo
A bracket to consolidate components and allow for a streamlined bench-top installation. Bring your own components, wire, lugs, etc.
We’ll supply:
A complete wiring diagram is included with trekMount Ready, and available as an add-on with trekMount Solo.
How it works
trekMount does not include any of the primary energy system components. If you purchase these components with trekMount, we’ll confirm that all are compatible before shipping your order. If a component is not currently compatible, we’ll send you an update to confirm that you can either A) drill your own holes on an open area of trekMount or B) install this component separately from trekMount (ie. on the wall).
| Weight | 22 lbs |
|---|---|
| Dimensions | Length: 24 in Width: 22.5 in Height: 6.75 in |
| Type | Solo (Bracket Only), Ready (Pre-Wired, Pre-Programmed & Tested) |
We listened to camper van builders, RV OEMs, aftermarket service providers, and countless other professionals and enthusiasts who expressed the desire to use Victron components on their platforms, but hesitated because of the time and expertise required for installation. This challenge – time and expertise required for installation – is what we aimed to solve with trekMount. And we decided to try and save space while we were at it.

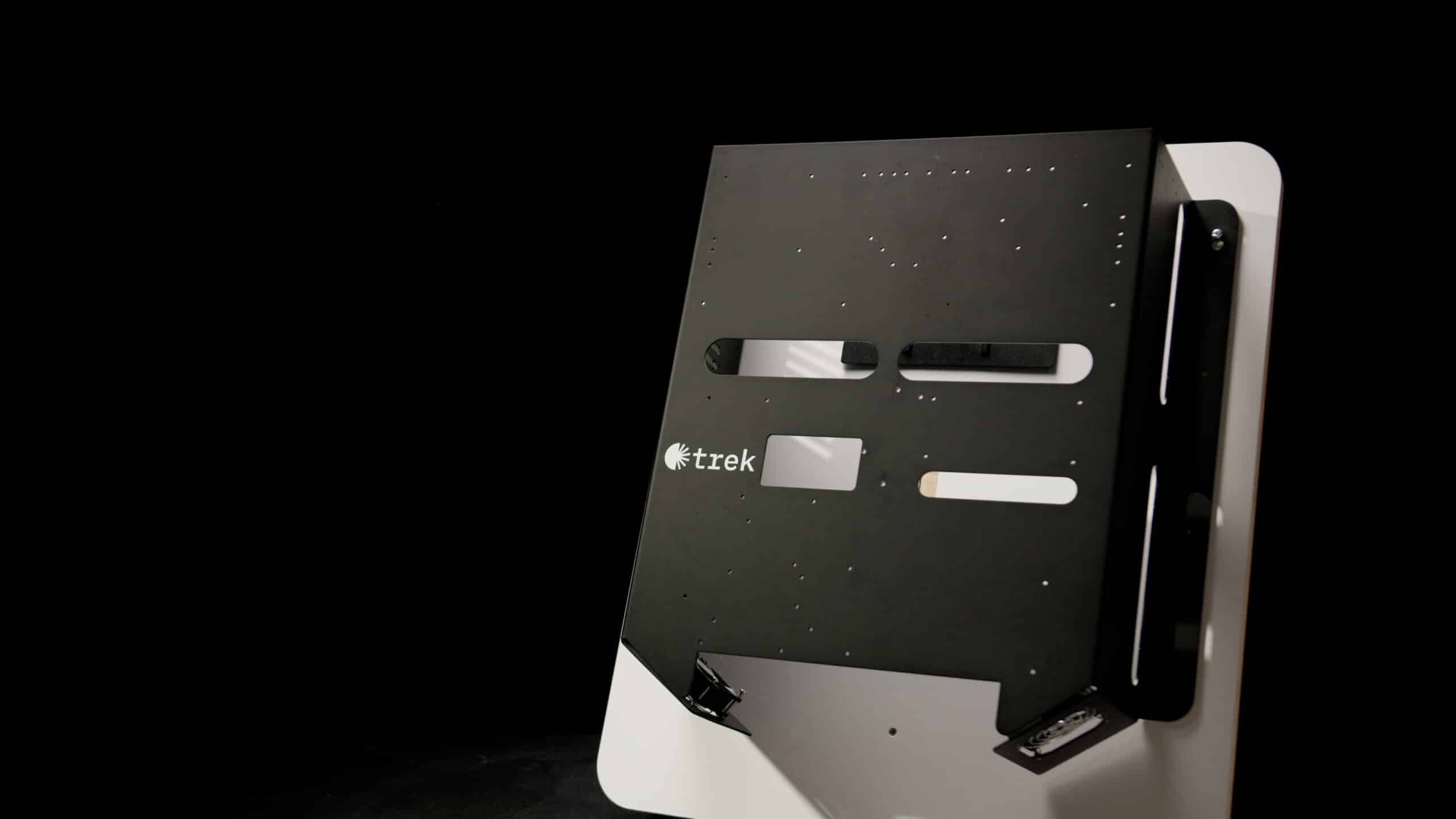

trekMount Solo is a bracket with threaded mounting holes for all of the common components typically used in a Victron system. You tell us which components you’re using, we’ll show you where to mount them, and we’ll provide the mounting screws.

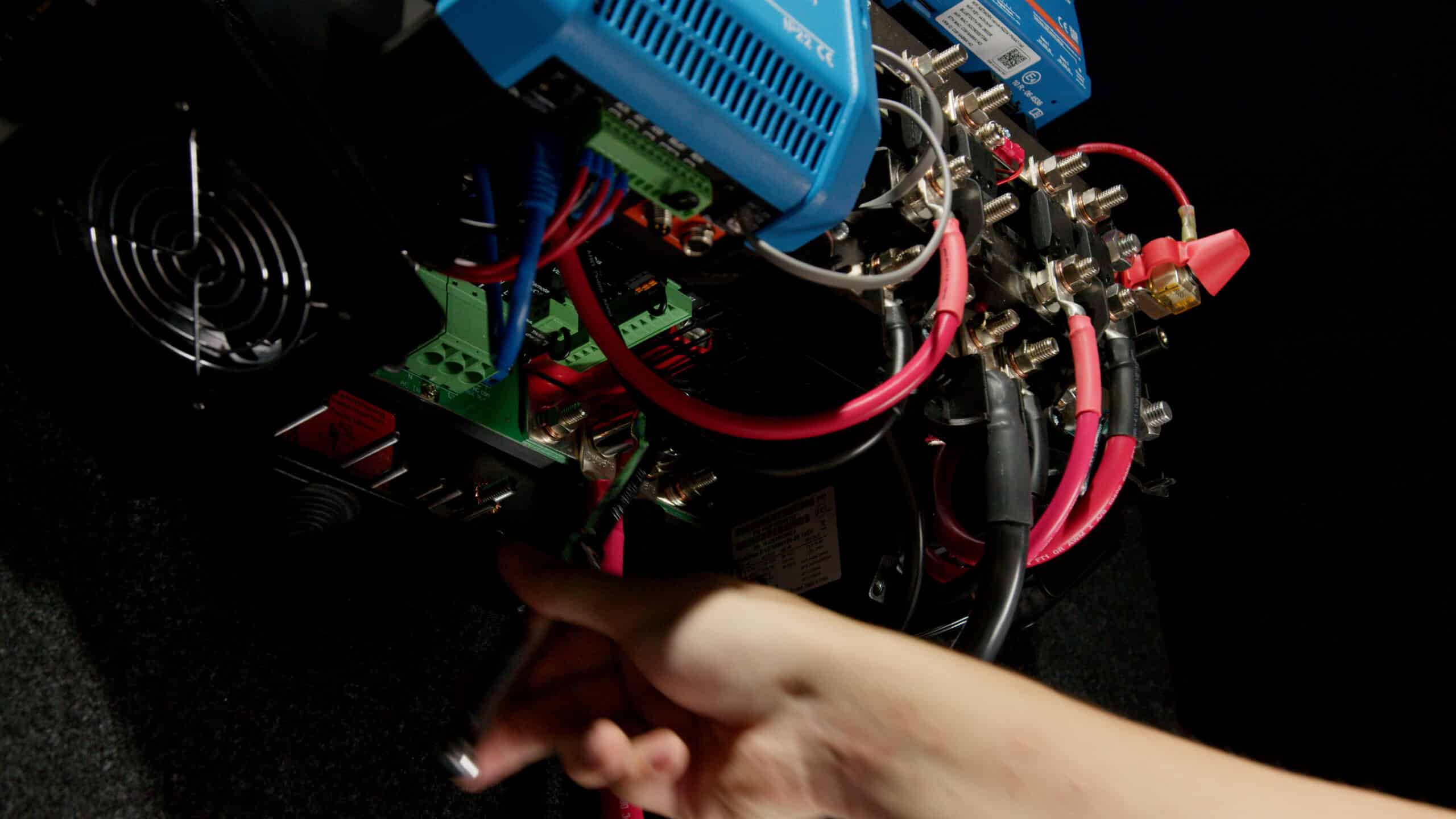

With smartly placed cable management anchors spread throughout the backside of the bracket, it’s easy to keep cable runs clean (even though they’ll be out of sight).
Cooling fans are included with trekMount Solo to keep the inverter mounted behind our bracket cool.
Instead of working inside a tightly cramped compartment, where fatigue sets in faster and mistakes become more common, trekMount Solo is designed to be wired on a bench – much nicer.
Because trekMount fits around the inverter, and allows you to use the space in front of the inverter, and on either side of the inverter more efficiently, the overall footprint of a system with trekMount is significantly less than that seen with traditional installation methods.
trekMount Solo is the perfect middle ground for those who want an easier/faster/cleaner installation, but still desire to be deeply involved in the wiring, programming and final commissioning of the system.
trekMount Ready is the truly turn-key version. Everything mentioned with trekMount Solo still stands, with the addition of component installation, wiring, programming and full system testing – all completed and quality checked by our expert team in Denver, CO.
In addition to our standard trekMount products, we also work with OEMs to design custom rapid-deploy solutions for fleet applications with particular space constraints or load requirements.
trekMount is a modular mounting system designed to make energy systems easier and faster to install.
trekMount is designed for RVs, camper vans, overland vehicles, speciality trailers, and other off grid or remote environments that may be exposed to harsh conditions.
Yes, trekMount was designed with Victron Energy components top of mind. Mounting holes are available for most Victron solar chargers, DC-DC chargers, the Lynx Distributor, Cerbo GX, SmartShunt, and many other commonly used components.
trekMount is designed to be easily installed by a single person. With all components mounted and wired, trekMount will typically weigh under 50 lbs (less than the MultiPlus 3K).
