Price range: $599.20 through $2,419.97

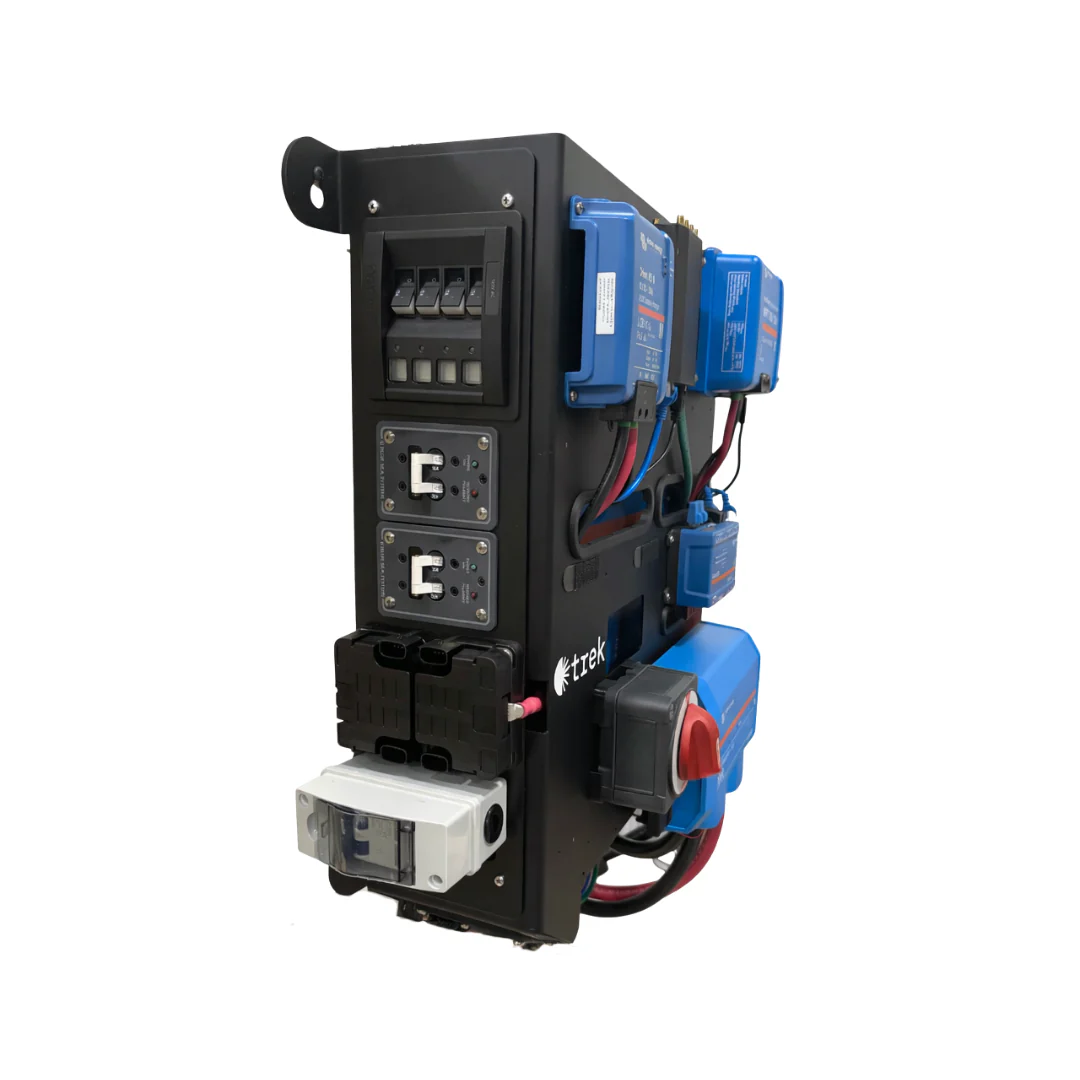

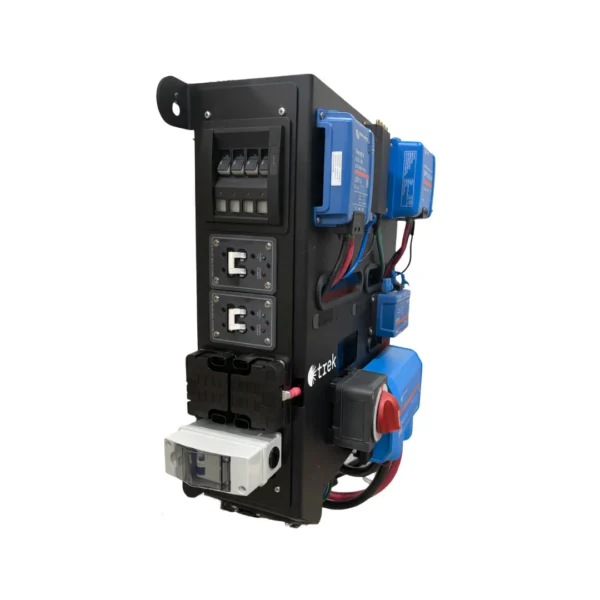

An all-in-one Victron energy mounting system. Save space and install with ease. This version includes a dedicated left-side panel designed to accommodate an AC Distribution Panel, up to two AC Input Breakers, and up to two DC Fuse Blocks with a sealed busbars.
Looking for something with more flexible mounting options for DC-only setups? Check out our original trekMount for additional configurations.
trekMount AC/DC Solo [Bracket Only] – wire up the system yourself on a bench with mounting holes and cable management already worked out.
trekMount AC/DC Ready [Pre-Wired, Pre-Programmed, Tested] – the fastest, most user friendly Victron system available. Rapid-deploy. Plug & play. Quick-connect.
One mount, countless options.
Note: Currently the trekMount AC/DC is only designed for use with Victron Multiplus II 3000VA Inverter/Chargers.
trekMount AC/DC Ready (components purchased separately)
These are the components we’ll mount, wire and program (cables, terminals, and heat shrink included for all circuits):
x1 MPPT (all Victron models are compatible, excluding MPPT RS series)
x1 PV Disconnect
x1 DC-DC charger (all Victron models are compatible, excluding the Orion XS 1400)
x1 Lynx Distributor
x1 Lynx BMS , Lynx Shunt VE.Can, or Lynx Clean Install Kit (w/ Disconnect Switch and Victron SmartShunt)
x1 Victron DC-DC step-down converter (for 24V or 48V systems)
x1 Cerbo GX
x1 GX Touch 50 (by way of GX Touch 50 wall mount)
x1 BatteryProtect (all Victron models are compatible)
x1-2 DC Fuse Block and Sealed Busbar
x1-2 AC Input Breaker
x1 AC Distribution Panel with Insulating Cover
x1 MultiPlus-ll 3kVA (12V, 24V or 48V)
x2 Fans for Active Cooling (these turn on/off with the built-in inverter fans) included
Complete wiring diagram included
Note: At this time we are only able to mount components purchased from Trek Systems.
Optional add-ons:
x1 GX LTE 4G
x1 Arco Zeus High Energy Alternator Regulator
x1 GX I/O extender
x1 SeeLevel Soul Tank Monitoring Interface
x1 Peplink BR1 Mini Mobile Router (4G LTE and 5G versions) + SIM install and configuration
Additional Victron MPPTs
Additional Victron DC-DC Chargers or Converters
trekMount AC/DC Solo
A bracket to consolidate components and allow for a streamlined bench-top installation. Bring your own components, wire, lugs, etc.
We’ll supply:
A complete wiring diagram is included with trekMount AC/DC Ready, and available as an add-on with trekMount AC/DC Solo.
How it works
trekMount AC/DC does not include any of the primary energy system components. If you purchase these components with trekMount AC/DC, we’ll confirm that all are compatible before shipping your order. If a component is not currently compatible, we’ll send you an update to confirm that you can either A) drill your own holes on an open area of trekMount AC/DC or B) install this component separately from trekMount AC/DC (ie. on the wall).
| Weight | N/A |
|---|---|
| Dimensions | Length: in Width: in Height: in |
| Type | Solo (Bracket Only), Ready (Pre-Wired, Pre-Programmed & Tested) |
Camper van and specialty vehicle builders, RV OEMs, aftermarket service providers, and countless other professionals and enthusiasts expressed the desire to use Victron components on their platforms, but hesitated because of the time and expertise required for installation. This challenge – time and expertise required for installation – is what we aimed to solve. Space savings was a bonus.
trekMount Solo is a bracket with threaded mounting holes for all of the common components typically used in a Victron system. You tell us which components you’re using, we’ll show you where to mount them, and we’ll provide the mounting screws.
With smartly placed cable management anchors spread throughout the backside of the bracket, it’s easy to keep cable runs clean (even though they’ll be out of sight).
Cooling fans are included with trekMount Solo to keep the inverter mounted behind our bracket cool.
Instead of working inside a tightly cramped compartment, where fatigue sets in faster and mistakes become more common, trekMount Solo is designed to be wired on a bench.
Because trekMount fits around the inverter and allows you to use the space in front of the inverter, and on either side of the inverter more efficiently, the overall footprint of a system with trekMount can be significantly less than that seen with traditional installation methods.
trekMount Solo is the perfect middle ground for those who want an easier/faster/cleaner installation, but still desire to be deeply involved in the wiring, programming and final commissioning of the system.
trekMount Ready is the turn-key version. Everything mentioned with trekMount Solo still stands, with the addition of component installation, wiring, programming and full system testing – all completed and quality checked by our expert team in Denver, CO.
In addition to our off-the-shelf trekMount products, we also work with OEMs to design custom rapid-deploy solutions for fleet applications.
trekMount is a modular mounting system designed to make energy systems easier and faster to install.
trekMount is designed for RVs, camper vans, overland vehicles, speciality trailers, and other off grid or remote environments that may be exposed to harsh conditions.
Yes, trekMount was designed with Victron Energy components top of mind. Mounting holes are available for most Victron solar chargers, DC-DC chargers, the Lynx Distributor, Cerbo GX, SmartShunt, and many other commonly used components.
trekMount is designed to be easily installed by a single person. With all components mounted and wired, trekMount will typically weigh under 50 lbs (less than the MultiPlus 3K).
