$28.31
-

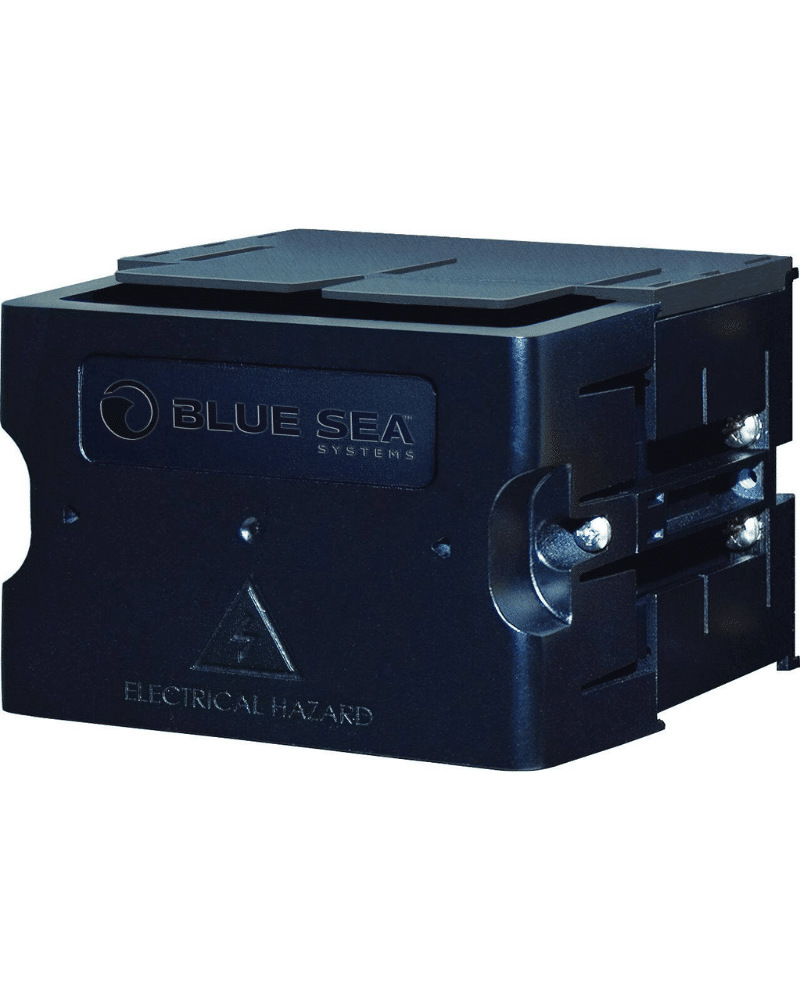

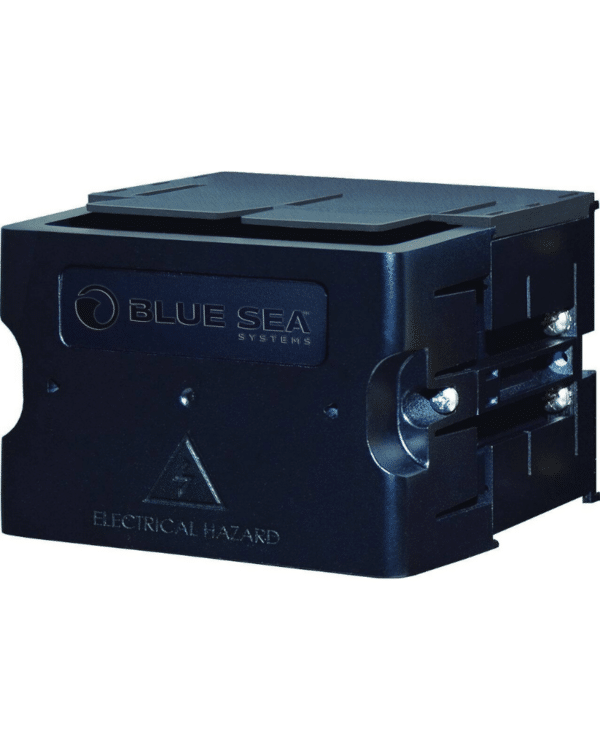

The Blue Sea Systems 1331 AC Insulating Cover is a marine-grade protective cover engineered for use with 360 Panel AC electrical systems. Designed to improve safety and compliance, this insulating cover isolates AC circuits and components from adjacent DC system elements, helping vessel installations meet ABYC electrical safety standards.

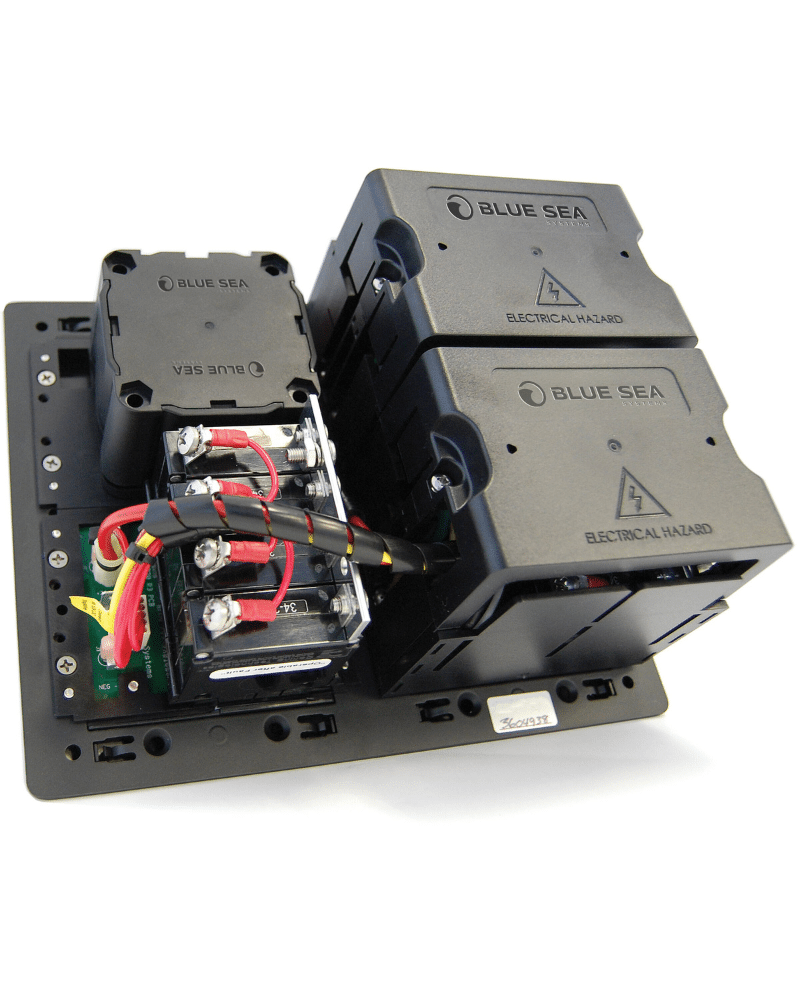

Constructed with a modular interlocking design, the cover utilizes SIDE, TOP, and END components that can be combined and stacked to accommodate larger electrical assemblies. This flexibility makes it ideal for a wide range of marine electrical panel configurations.

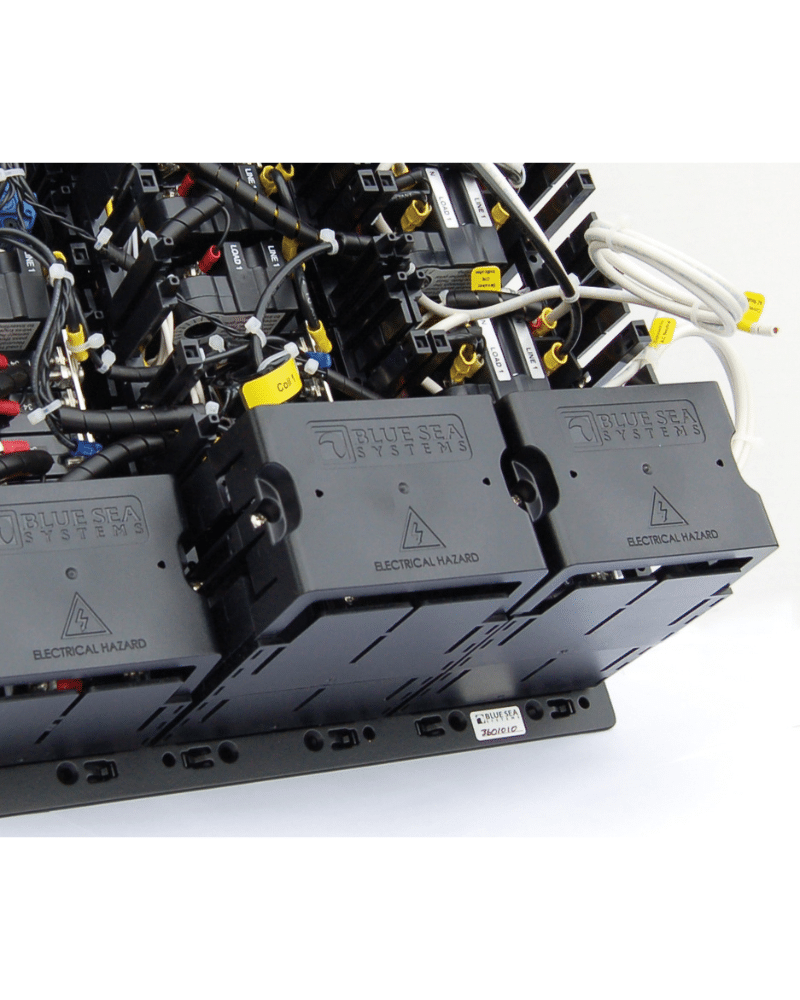

In addition to electrical isolation, the cover provides robust mechanical protection for panel backs that extend into storage lockers or service compartments, reducing the risk of accidental contact with energized components. Convenient wire-access breakouts allow cables to be routed from multiple directions without compromising protection.
Whether used in new marine installations or retrofit projects, the Blue Sea 1331 Insulating Cover delivers enhanced safety, professional panel protection, and compliance with industry electrical standards.
Compatibility Note:
This AC insulating cover is specifically designed for use with the Blue Sea Systems 360 Panel series and is commonly installed on the 120V 4-Position AC Distribution Panel and Blue Sea Systems 120 Volt AC Main + 2 Positions to provide electrical isolation and rear-panel protection. It is also compatible with several other Blue Sea AC distribution panels and source selector panels.
| Weight | 0.35 lbs |
|---|---|
| Dimensions | Length: 4 in Width: 5 in Height: 4 in |
