Price range: $799.00 through $1,899.00
The Peplink MAX Orbit Series is a family of multi-orbit satellite routers designed to combine and manage multiple satellite connections into a single, resilient network. Built for demanding enterprise, transportation, maritime, remote-site, and field deployments, MAX Orbit enables organizations to connect multiple satellite terminals from providers such as Starlink, OneWeb, and other supported satellite networks.
Using Peplink’s SpeedFusion technology, MAX Orbit routers can bond multiple connections together to increase available bandwidth while improving network resilience. The platform also supports advanced connectivity features including Hot Failover, Bandwidth Bonding, WAN Smoothing, and SpeedFusion Boost, helping maintain reliable connectivity when individual satellite links experience congestion, handovers, weather-related interruptions, or other connection issues.
The MAX Orbit Series provides centralized visibility and management through Peplink InControl, allowing administrators to monitor and manage multi-orbit satellite deployments from a single platform. This makes the series particularly useful for organizations operating multiple satellite terminals or distributed networks across remote and mobile locations.
Depending on the model, the MAX Orbit Series offers multiple Ethernet and USB WAN interfaces, multi-gigabit connectivity, Wi-Fi, integrated GPS, PoE capabilities, GPIO and ignition sensing, and edge-computing support. Higher-end models provide additional ports and increased throughput for larger multi-terminal deployments.
MAX Orbit is designed to work with multiple satellite providers and terminals. Instead of relying on a single satellite connection, organizations can connect multiple satellite links to the router and use Peplink SpeedFusion technologies to intelligently manage and combine those connections.
This makes the MAX Orbit Series suitable for applications where connectivity reliability, bandwidth, and redundancy are critical.
Peplink SpeedFusion provides several technologies designed to improve the performance and reliability of connected networks:
MAX Orbit integrates with Peplink InControl for centralized cloud-based management. Administrators can monitor connected devices, manage configurations, review network performance, and oversee multi-orbit deployments from a centralized interface.
This is especially valuable for organizations managing satellite connectivity across multiple vehicles, remote sites, field operations, or distributed infrastructure.
The MAX Orbit Series is designed for demanding environments, with models supporting an operating temperature range of -40°C to 65°C (-40°F to 149°F). Integrated GPS is available across the series, while selected models provide additional features such as GPIO and ignition sensing for vehicle and mobile installations.
Depending on the model, MAX Orbit provides integrated Wi-Fi capabilities and edge-computing functionality. MAX Orbit 2 and MAX Orbit 4 feature Wi-Fi 6, while MAX Orbit 8 upgrades to Wi-Fi 7.
Selected models also support Docker-based edge computing and internal storage, allowing suitable applications and services to run directly on the router.

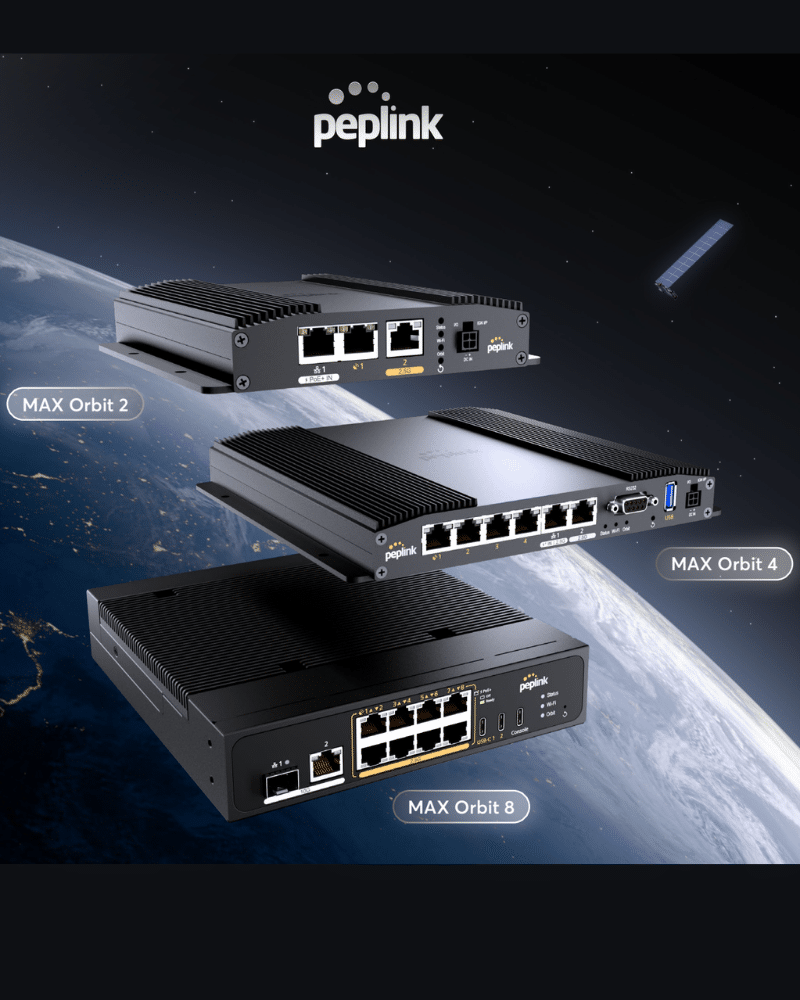

The MAX Orbit 2 is the compact option in the series, designed for deployments requiring up to two satellite connections. It provides a 2.5G multi-gigabit Orbit WAN interface and a 1G Ethernet WAN interface, along with Wi-Fi 6 and a router throughput of up to 1 Gbps.
It is an excellent choice for smaller remote sites, field deployments, vehicles, and applications where a compact multi-orbit router is preferred.
The MAX Orbit 4 expands the platform to support up to four Ethernet satellite WAN connections plus USB WAN connectivity. It includes two 2.5G multi-gigabit Ethernet ports that can be configured for WAN use, Wi-Fi 6, GPIO and ignition sensing, and a router throughput of up to 1 Gbps.
It is suited for mobile command units, transportation, field operations, and deployments requiring more satellite connections and flexible WAN configuration.
The MAX Orbit 8 is the high-capacity model of the series, providing eight 2.5G multi-gigabit Orbit WAN ports with PoE+ output. It also includes USB-C WAN interfaces, 10G Ethernet, 10G SFP+, Wi-Fi 7, and up to 4 Gbps router throughput.
With support for up to eight PoE+ satellite connections and a total PoE budget of up to 240W, MAX Orbit 8 is designed for larger multi-terminal deployments requiring high bandwidth and extensive connectivity.
The Peplink MAX Orbit Series is suitable for:
1-Year Limited Warranty with PrimeCare service options available depending on the selected model.
The MAX Orbit Series provides a scalable solution for organizations that need to combine multiple satellite connections into a resilient, centrally managed network. From the compact MAX Orbit 2 to the high-capacity MAX Orbit 8, customers can select the model that best matches their number of satellite terminals, bandwidth requirements, port requirements, and deployment environment.
| Weight | N/A |
|---|---|
| Dimensions | Length: in Width: in Height: in |
| Model | MAX Orbit 2, MAX Orbit 4, MAX Orbit 8 |
MAX Orbit 2 — Package Contents
MAX Orbit 4 — Package Contents
MAX Orbit 8 — Package Contents
