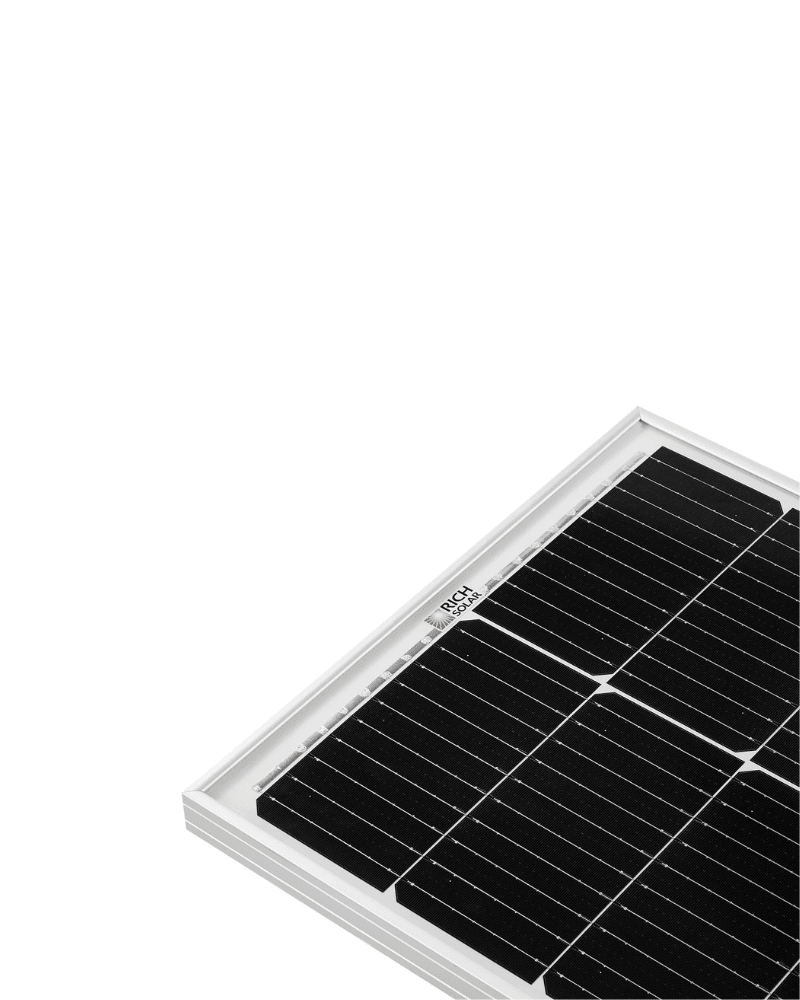

Durable anodized aluminum frame, lightweight and corrosion-resistant
12 pre-drilled mounting holes for Z brackets, tilt mounts, pole, or ground installation
Solar connectors with 3 ft pre-attached cables for quick panel-to-panel connection
Compatible with both on-grid and off-grid inverters
Warranty
25-year output warranty
10-year workmanship warranty
Built-in Components
Panel Leads (Pair): 12 AWG, 3 ft each

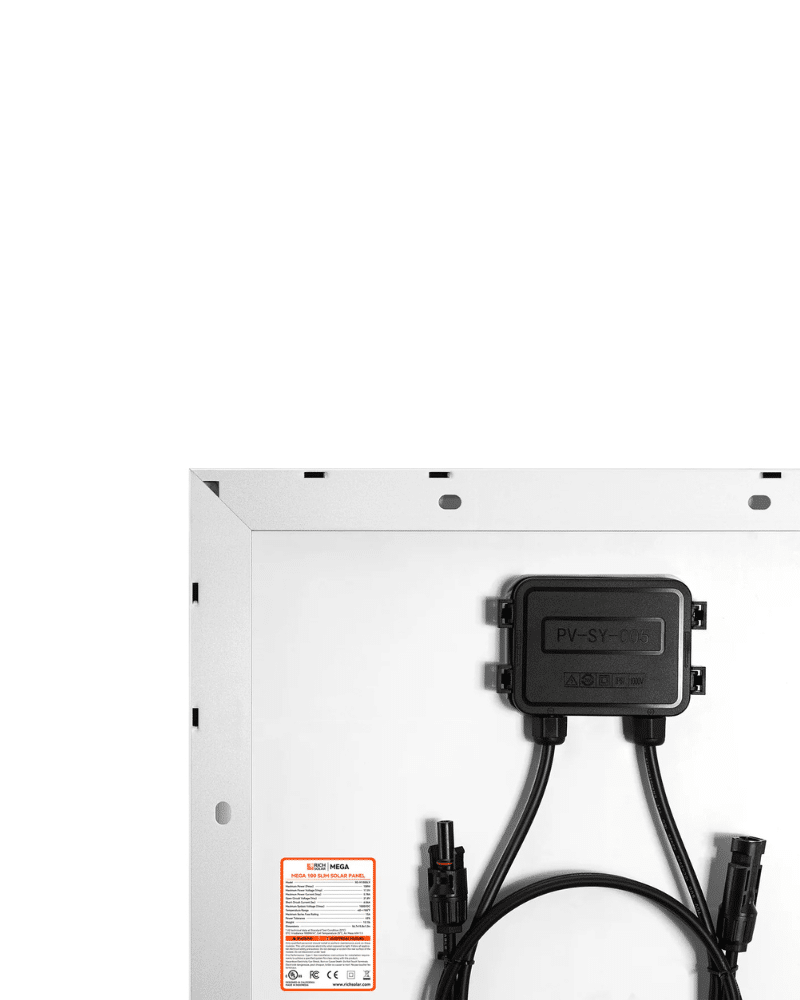

IP67-rated waterproof junction box
IP67-rated waterproof solar connectors

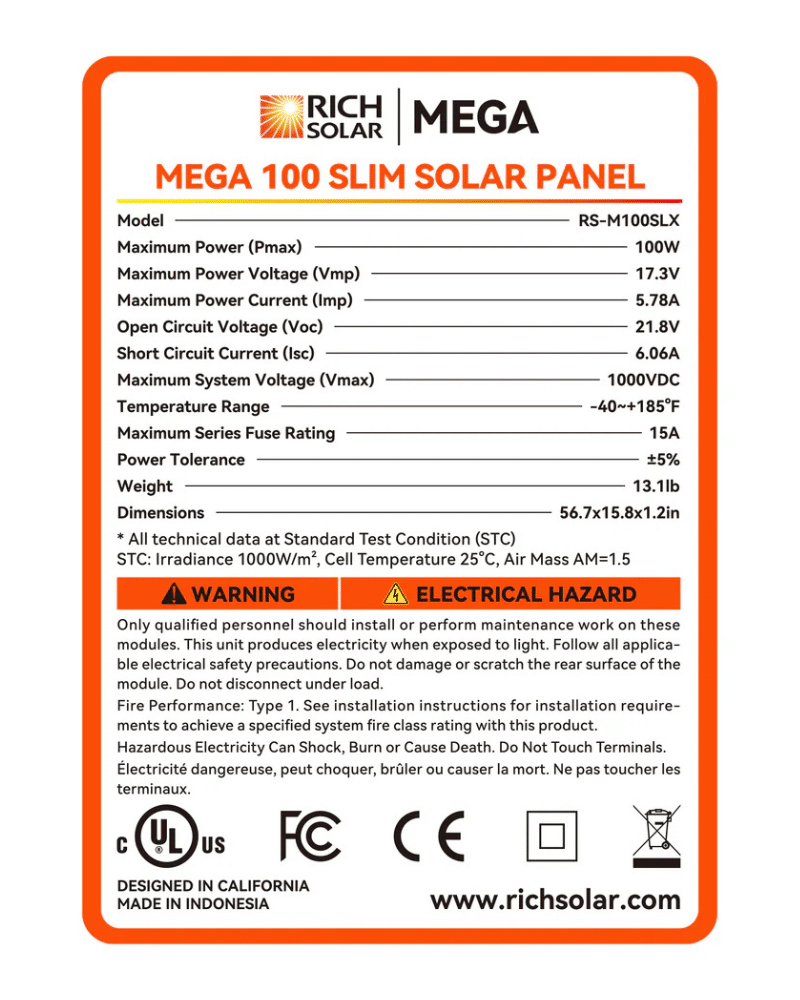

Specifications
Maximum Power(Pmax): 100W
Maximum Power Voltage(Vmp): 17.3V
Maximum Power Current(Imp): 5.78A
Open Circuit Voltage(Voc): 21.8V
Short Circuit Current(Isc): 6.06A
Maximum System Voltage(Vmax): 1000VDC
Maximum Series Fuse Rating:15A
Weight: 13.1 lb

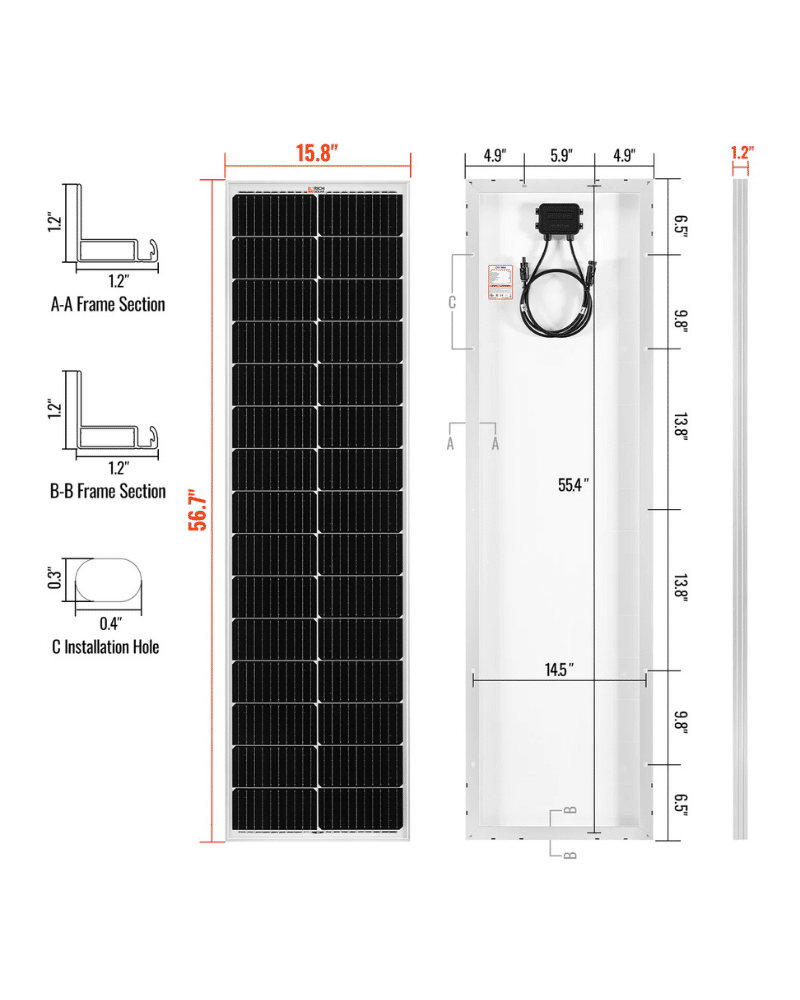

Dimensions: 56.7 x 15.8 x 1.2 in
Additional information
Be Advised: Weight and Dimensions listed in this section may include packaging for shipping purposes. If you need exact weight and dimensions of this product, first review the product description and datasheet. If you are unable to locate these specs, please call our team at 720-594-5272.
