Stainless steel grommets in the panel, easy and low cost installation
One year warranty
Ideal for
Trailers, long-haul and heavy-duty trucks
Utility service vehicles
RV/Marine
Curved roofs
Outdoors
Backup power
Built-in Components

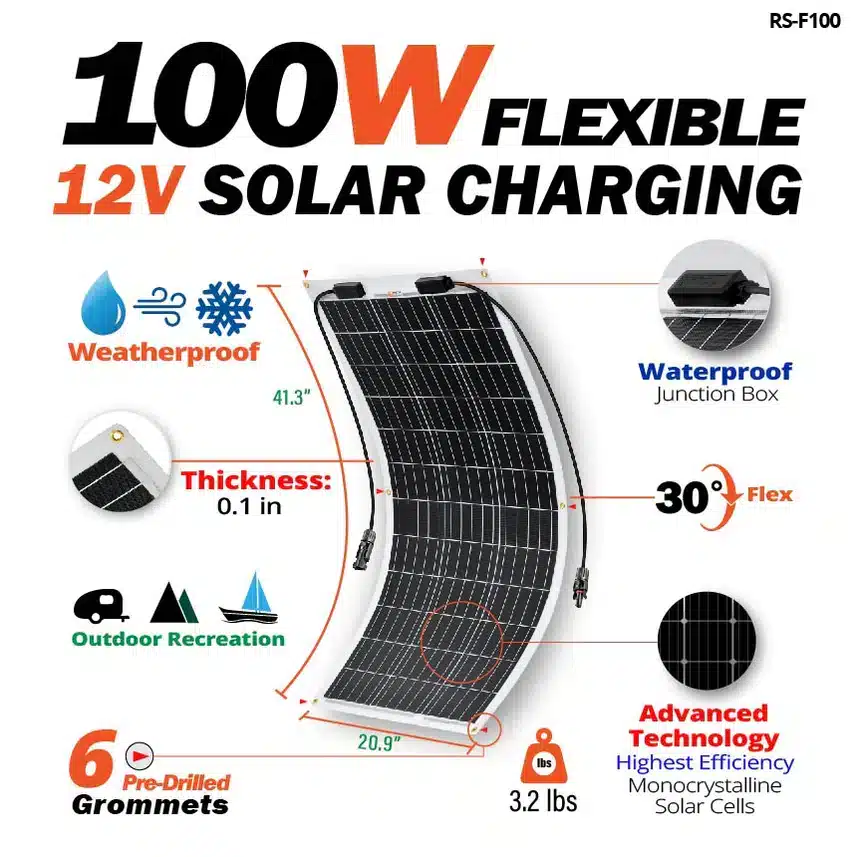

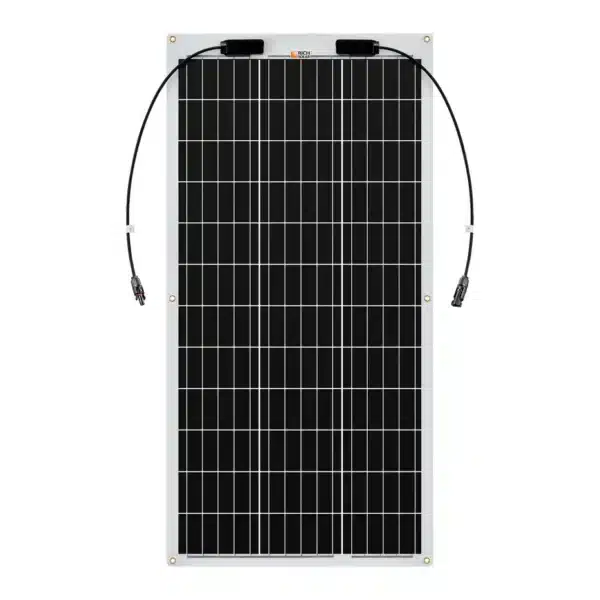

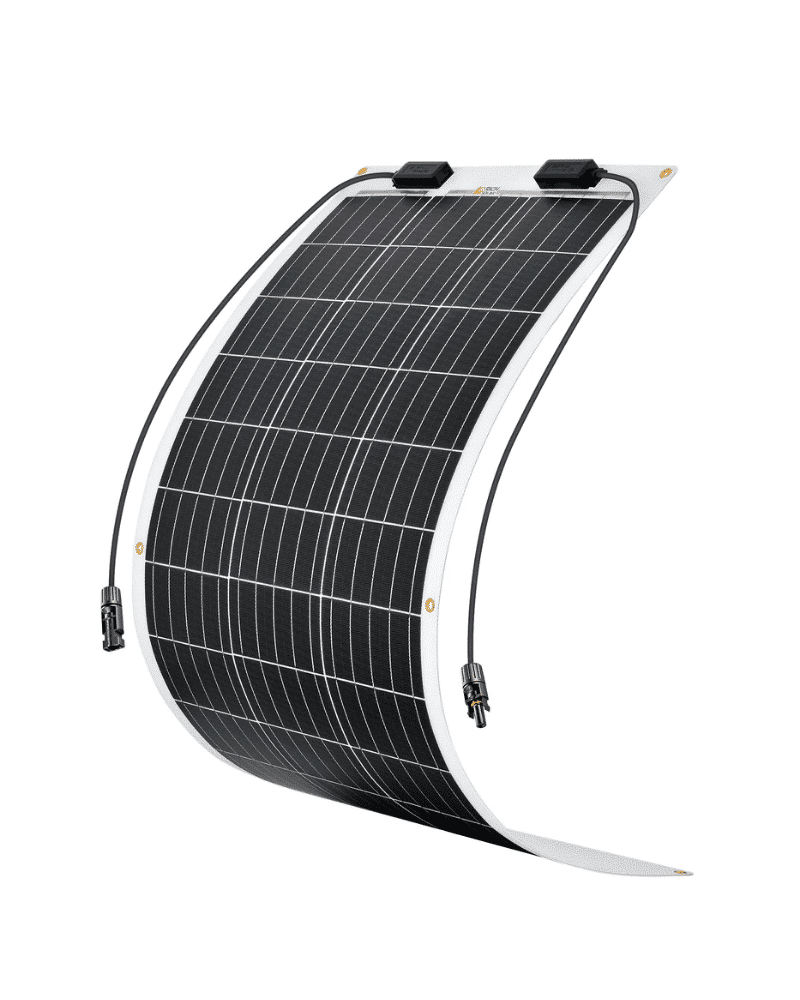

RICH SOLAR 100 watt flexible monocrystalline solar panel
Panel leads (pair): 24 in each
IP67 Rated waterproof junction box
IP67 Rated waterproof solar connectors
Bypass diodes built-in the junction box

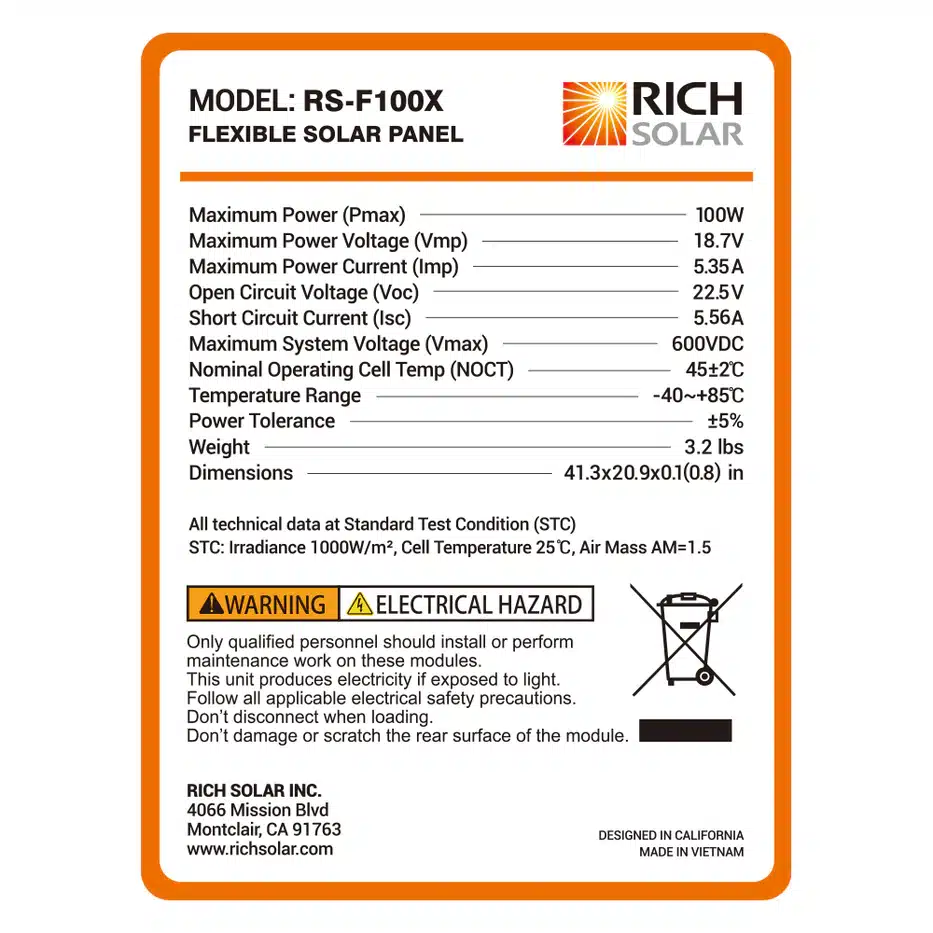

Specifications
Maximum Power(Pmax): 100W
Maximum Power Voltage(Vmp): 18.7V
Maximum Power Current(Imp): 5.35A
Open Circuit Voltage(Voc): 22.5V
Short Circuit Current(Isc): 5.56A
Maximum System Voltage(Vmax): 600VDC
Temperature Range: -40 ~ +85°C
Weight: 3.2 lb
Dimensions: 41.3 x 20.9 x 0.1(0.8) in
Additional information
Be Advised: Weight and Dimensions listed in this section may include packaging for shipping purposes. If you need exact weight and dimensions of this product, first review the product description and datasheet. If you are unable to locate these specs, please call our team at 720-594-5272.
Weight
4.8 lbs
Dimensions
Length: 40.6 in Width: 21.3 in Height: 0.8 in
