Original price was: $179.00.$152.15Current price is: $152.15.

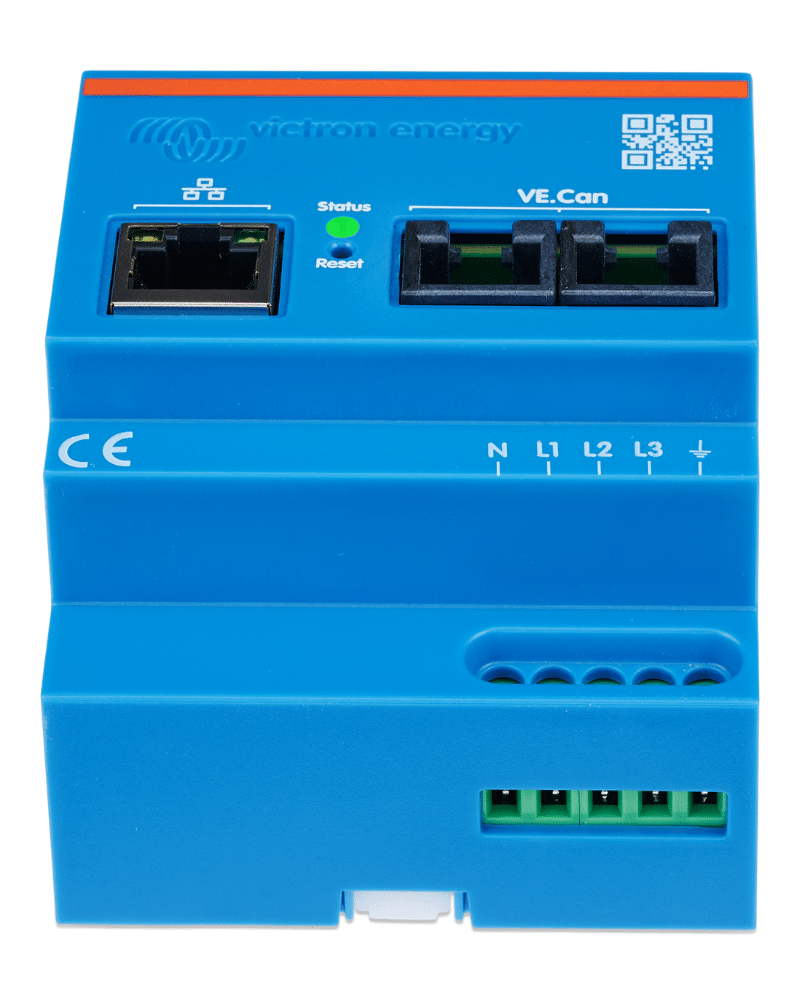

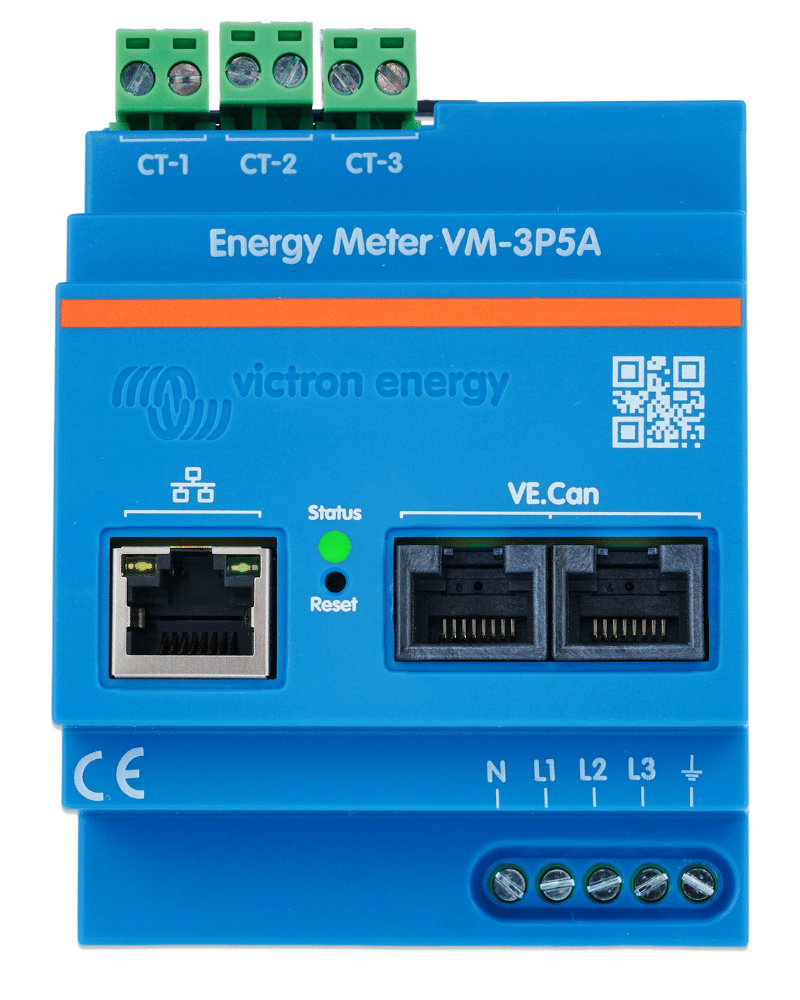

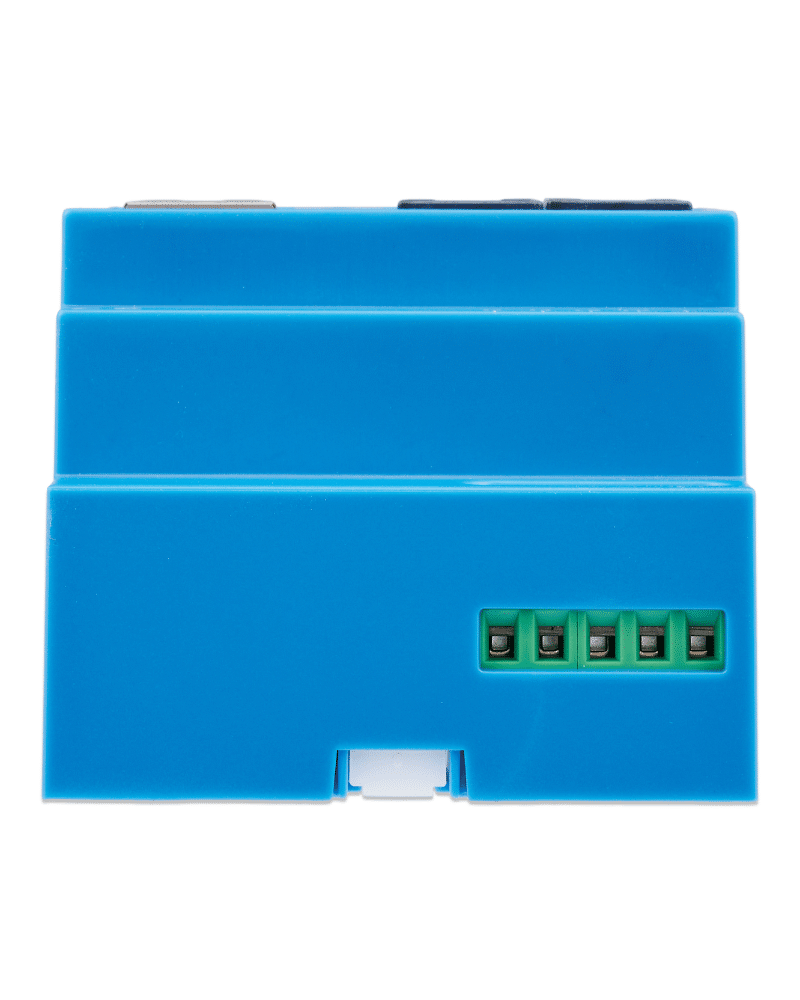

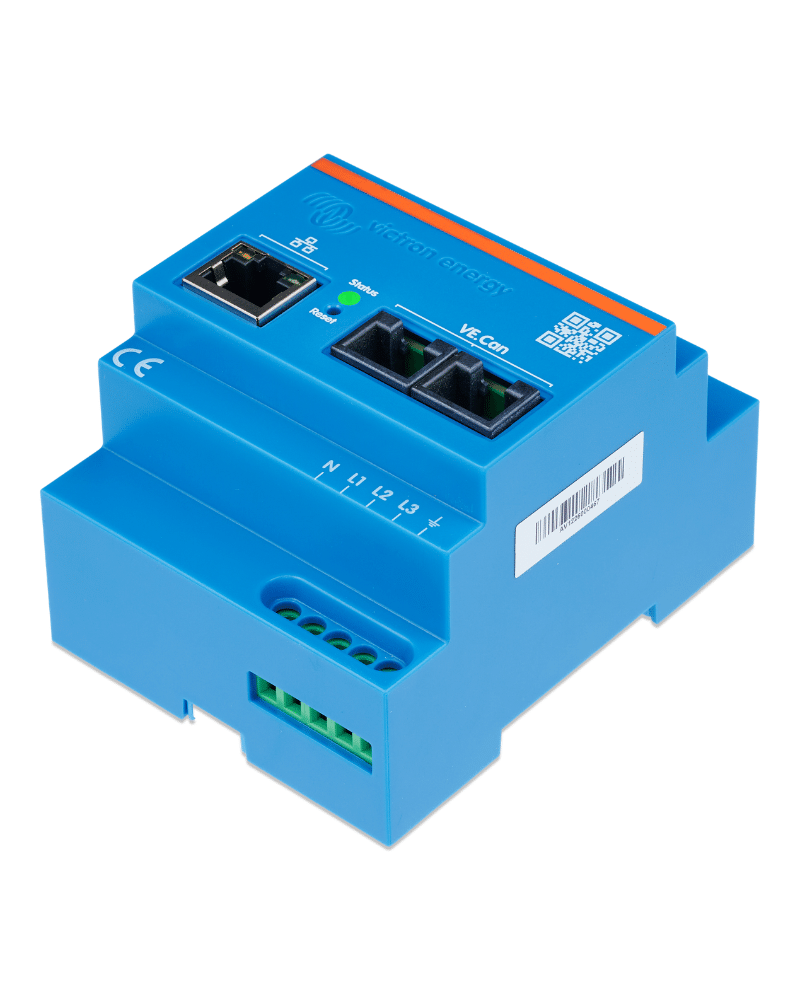

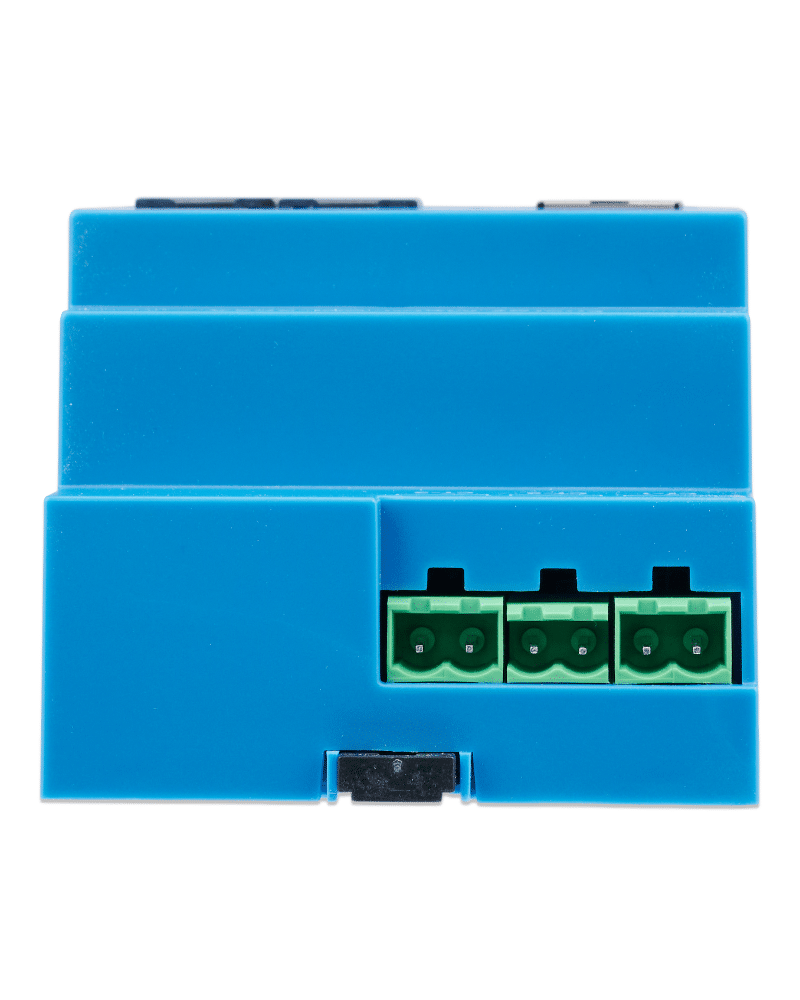

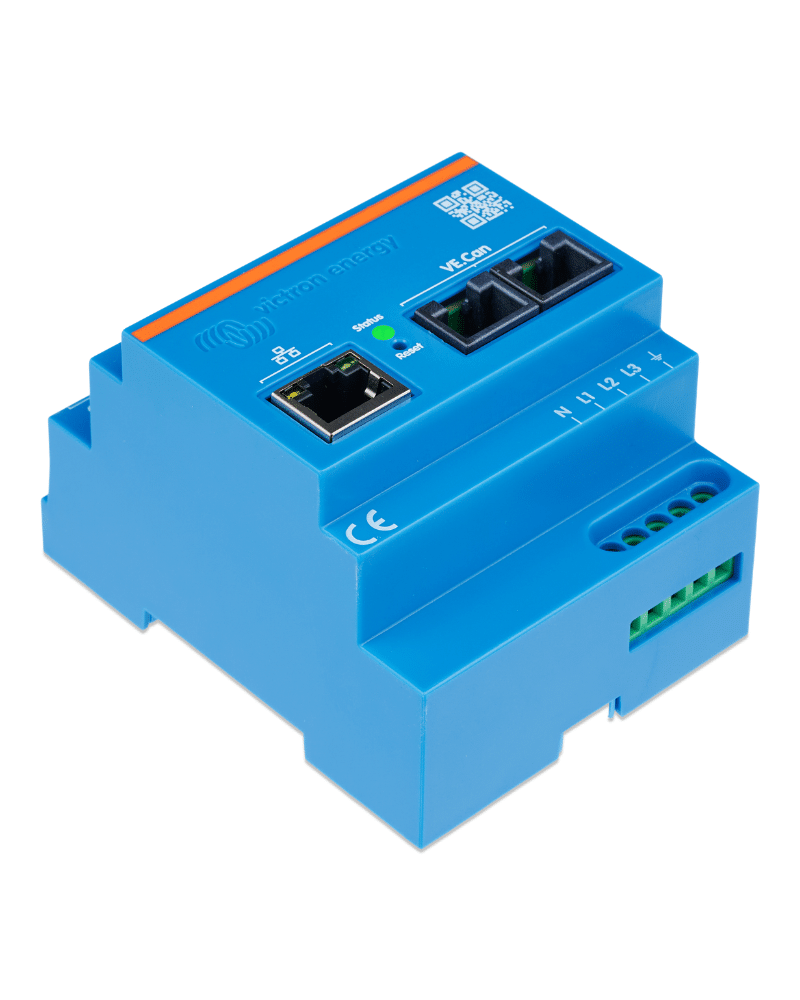

The Victron Energy VM-3P5A Energy Meter (REL200320100) is a three-phase energy meter designed for accurate monitoring and measurement of electrical energy within Victron Energy systems. It provides direct voltage measurement and measures current through external 5 A current transformers (CTs).
The VM-3P5A supports voltage measurements from 85 to 265 VAC line-to-neutral and 150 to 460 VAC line-to-line, with 50/60 Hz operation. Current measurement is performed through external current transformers, with a rated current input of 5 A.

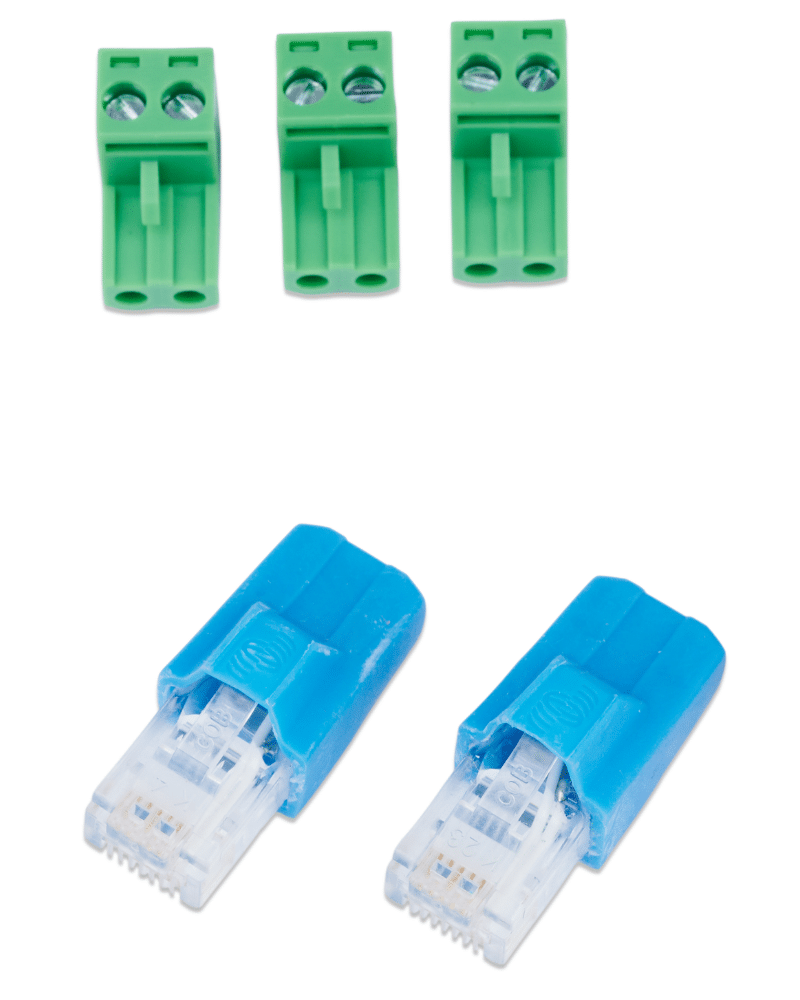

For system communication, the VM-3P5A features VE.Can connectivity through two RJ45 ports and an Ethernet RJ45 port supporting Modbus UDP. With a refresh rate of 100 ms, it provides fast measurement updates for monitoring and energy-management applications.
The meter is self-powered through the connected electrical supply and has a low power consumption of approximately 1.85 W / 3.5 VA. Its compact polycarbonate enclosure is designed for indoor installation and has an IP20 protection rating.
The VM-3P5A is suitable for applications where accurate three-phase energy monitoring and integration with a Victron Energy system are required.
Please note: External current transformers are not included with the VM-3P5A and must be sourced separately. Victron Energy does not supply CTs for this model. A suitable switch or circuit breaker is also required as a means of disconnection and is not included.
| Weight | 0.57 lbs |
|---|---|
| Dimensions | Length: 3.54 in Width: 2.80 in Height: 2.32 in |
