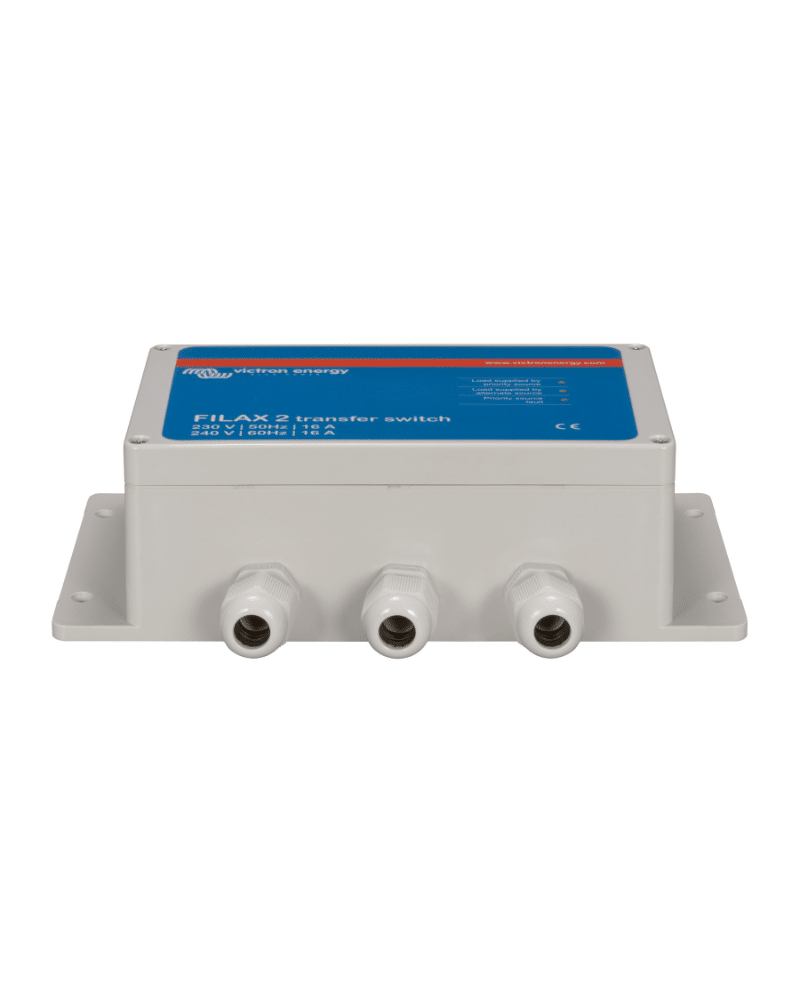

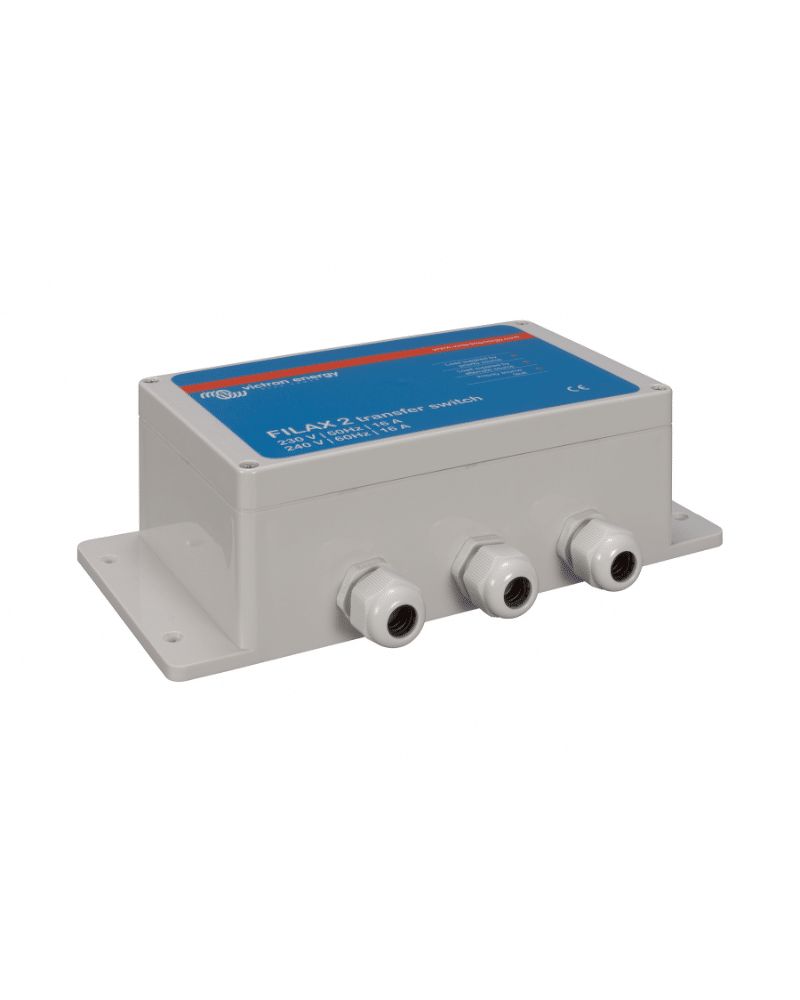

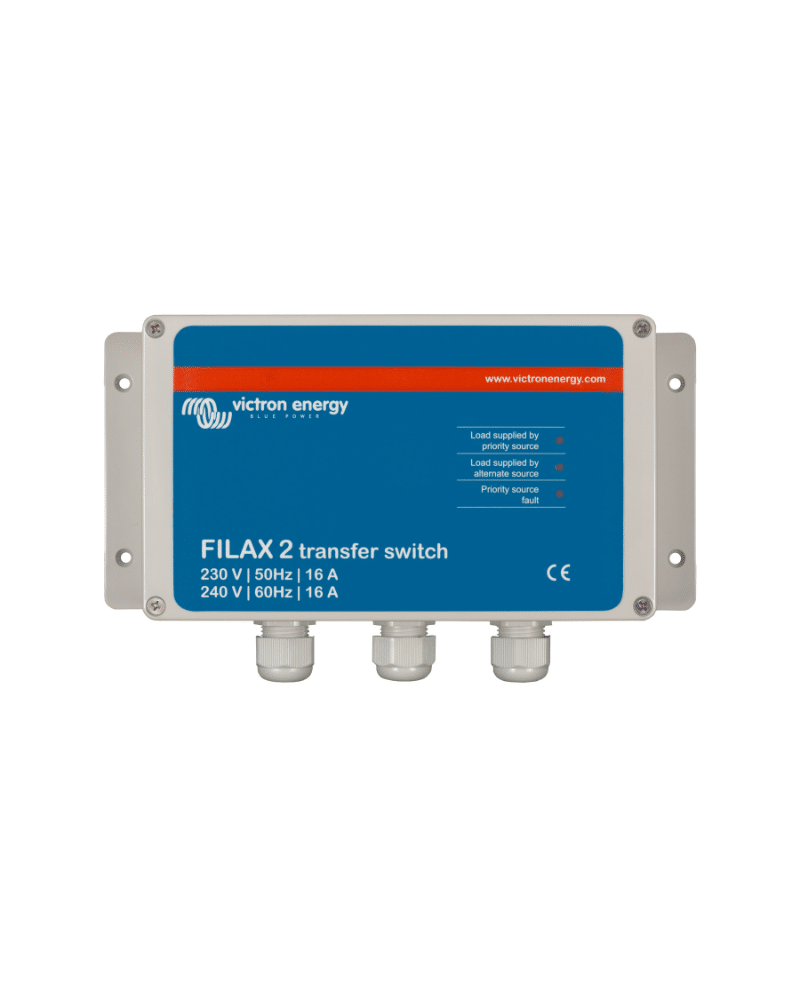

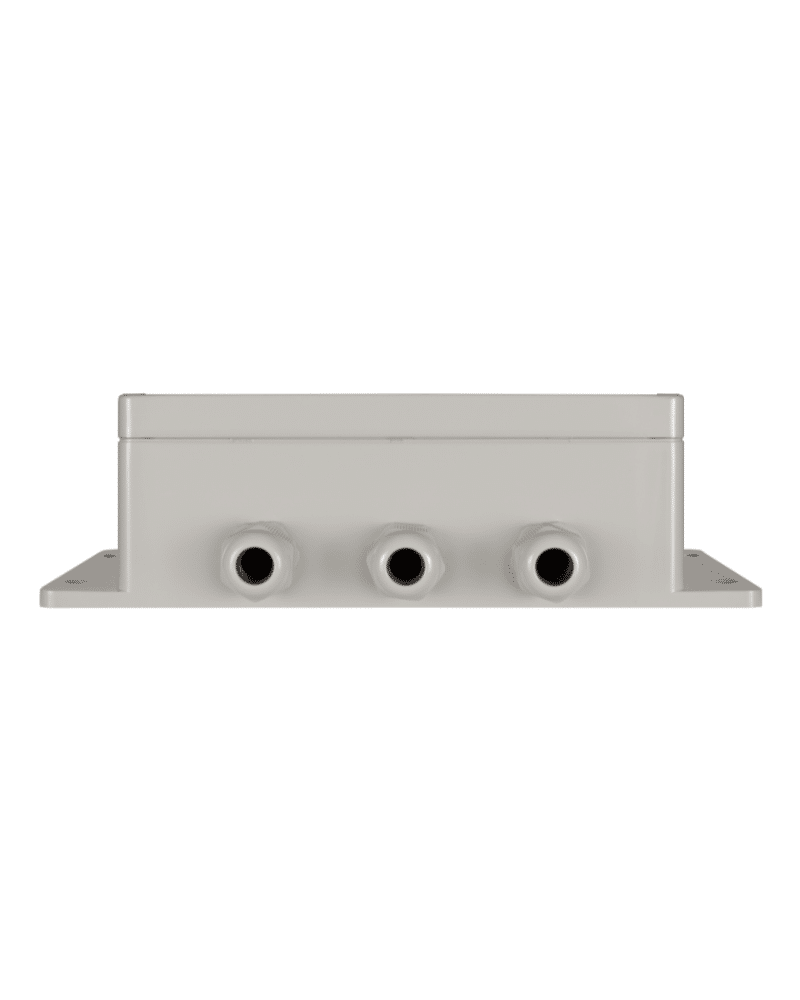

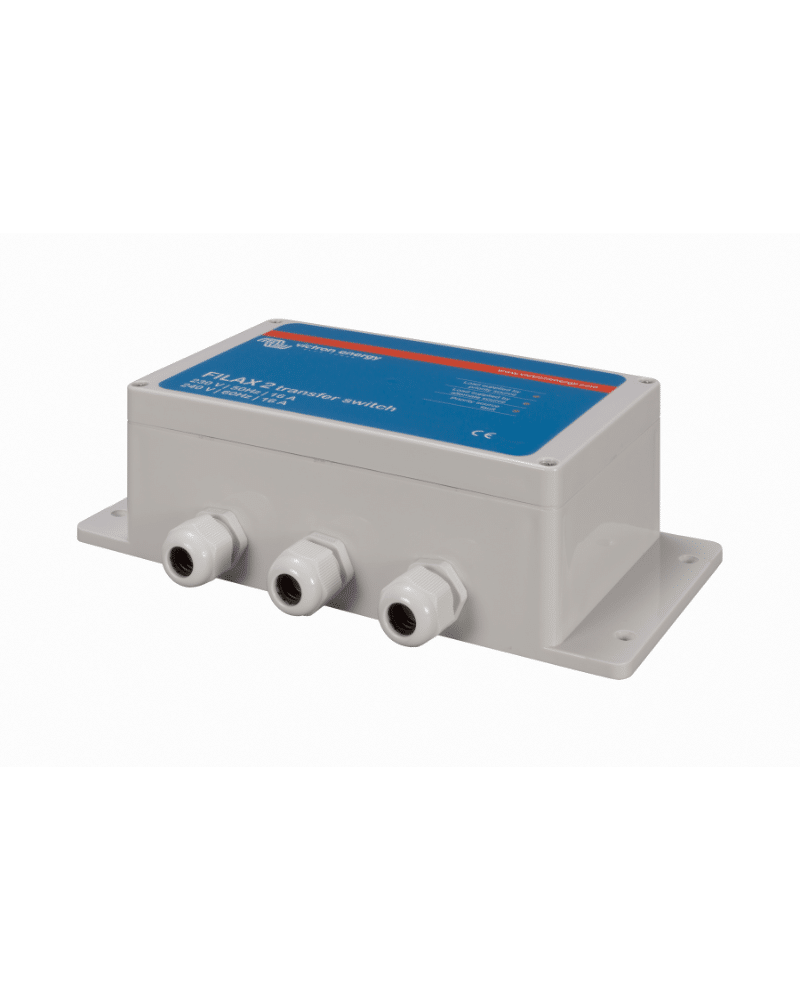

Victron Filax 2 Transfer Switch CE 230V/50Hz-240V/60Hz

Description

The Victron Energy Filax 2 Transfer Switch is a high-speed automatic transfer switch designed to provide uninterrupted power to sensitive electrical and electronic equipment. It allows a load to be automatically switched between two AC power sources, making it ideal for systems where maintaining a reliable power supply is essential.

The Filax 2 is particularly suited for applications using an inverter or UPS as a backup power source, together with a primary AC source such as utility power or a generator. Under normal conditions, the load is supplied by the priority AC source. If that source becomes unavailable or falls outside the required operating range, the Filax 2 rapidly transfers the load to the alternate source.

With a maximum transfer time of 16 milliseconds, the Filax 2 is designed to minimize interruptions and help sensitive equipment continue operating without noticeable downtime. Once the priority source becomes available again, the unit automatically switches the load back to the preferred source.

The Filax 2 operates with 230V/50Hz to 240V/60Hz AC power and is capable of handling loads up to 16A. Its compact design makes it suitable for installation in a variety of power backup and energy-system applications.

Key Features

• Automatic AC transfer switching between two power sources
• Designed for sensitive electrical and electronic loads
• Very fast transfer time of up to 16 ms
• Compatible with 230V/50Hz and 240V/60Hz AC systems
• 16A maximum current rating
• Automatically returns the load to the priority AC source when it becomes available
• Suitable for use with inverters, UPS systems, generators, and utility power
• Compact and practical design for system integration
• IP65 protection rating
• Suitable for a wide range of backup and critical-power applications
• Genuine Victron Energy equipment

Typical Applications

The Victron Energy Filax 2 is well suited for installations where sensitive equipment requires a dependable and rapid changeover between AC sources. Typical applications include:

• Backup power systems
• Inverter and UPS installations
• Computers and networking equipment
• Telecommunications equipment
• Home and office electrical systems
• Critical electronic equipment
• Marine and mobile power systems
• Generator and inverter backup systems

How the Filax 2 Works

The Filax 2 continuously monitors the available AC sources and keeps the load connected to the designated priority source during normal operation. When the priority source becomes unavailable, the Filax 2 quickly transfers the load to the alternate AC source.

When the priority source returns and is within the required operating conditions, the Filax 2 automatically transfers the load back. This automatic operation helps reduce the need for manual intervention while maintaining a reliable power supply for connected equipment.

Specifications

• Product: Filax 2 Transfer Switch
• Brand: Victron Energy
• Product Code / SKU: SDFI0000000
• Input Voltage: 230V AC / 50Hz – 240V AC / 60Hz
• Maximum Current: 16A
• Transfer Time: Up to 16 ms
• Protection Rating: IP65
• Dimensions: 120 × 255 × 75 mm
• Weight: Approximately 0.8 kg

The Victron Energy Filax 2 is an excellent choice for applications requiring fast, automatic and reliable transfer between two AC power sources, particularly where connected equipment cannot tolerate extended power interruptions.

Additional information

Downloads

• Datasheet
• Manual
