Tycon Power® DC PoE injector with 10–30VDC input

Description

Tycon Power TP-DC-12AT30-10G 30W 10G DC PoE+ Injector

The Tycon Power® TP-DC-12AT30-10G is a high-performance DC-to-DC Power over Ethernet (PoE+) injector designed to deliver reliable power and high-speed network connectivity for industrial, commercial, and off-grid applications. Featuring a 54VDC, 30W IEEE 802.3at PoE+ output and support for Ethernet speeds up to 10 Gigabit, this injector is ideal for powering compatible network devices in installations where a standard AC-powered PoE injector is not practical.

Designed for DC-powered environments, the TP-DC-12AT30-10G is well suited for solar-powered networks, battery systems, wireless networking equipment, security installations, and vehicle or marine applications. Its DC-to-DC conversion technology allows compatible DC power sources to provide the voltage required by supported PoE devices.

High-Speed 10G Ethernet Support

The TP-DC-12AT30-10G supports Ethernet data rates of 10/100/1000 Mbps, 2.5 Gigabit, 5 Gigabit, and 10 Gigabit Ethernet. This makes it suitable for modern high-bandwidth network installations that require fast data transmission without sacrificing convenient DC power delivery.

Reliable 30W PoE+ Power

This injector provides a regulated 54VDC PoE output rated for up to 30W, supporting IEEE 802.3af/at Class 4 PoE+ devices. It combines network data and power through the PoE output connection, helping simplify installations for compatible powered devices.

Designed for DC-Powered Installations

The injector is designed for battery-powered and other DC-powered systems, making it useful in locations where conventional AC power is unavailable or inconvenient. Typical applications include remote wireless access points, security equipment, solar-powered communication systems, and mobile networking installations.

Industrial Mounting and Durable Construction

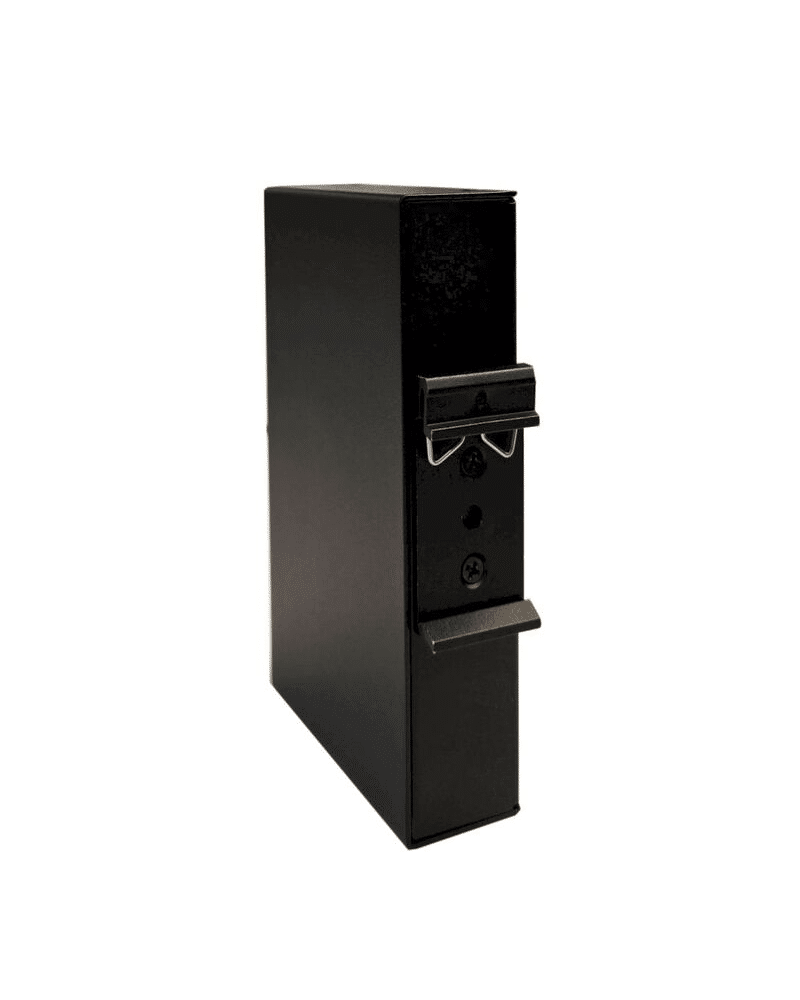

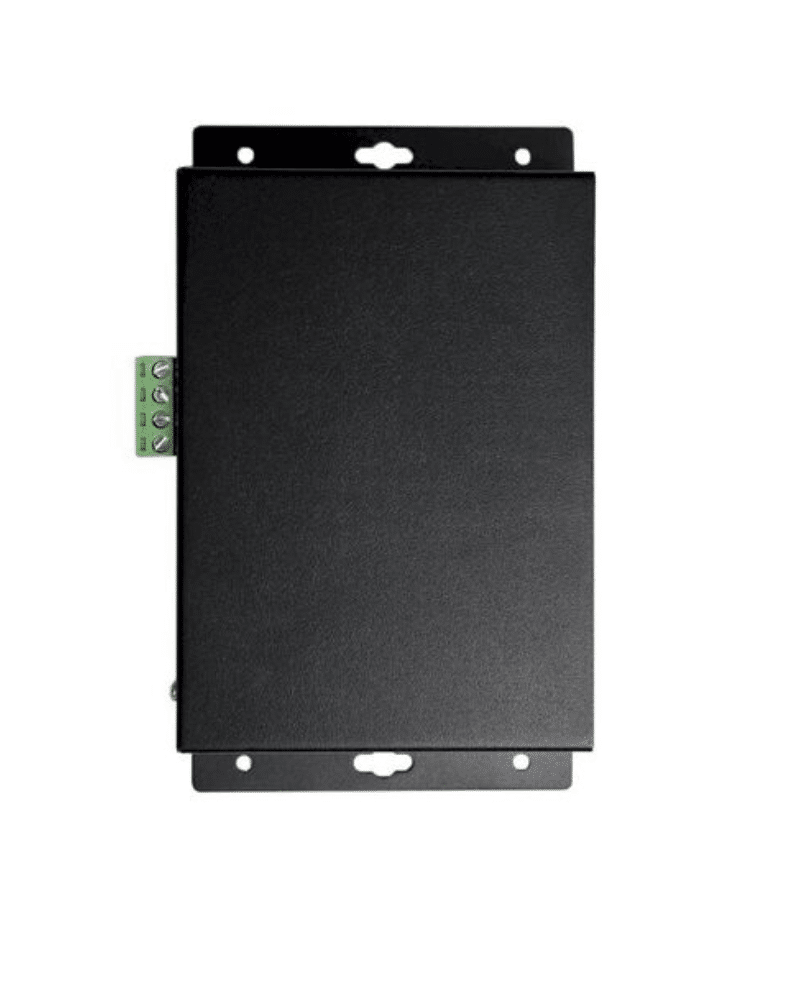

The TP-DC-12AT30-10G features a durable metal enclosure and includes mounting brackets for DIN-rail or wall installation. Its removable wire-terminal input supports conductors up to 12 AWG, allowing convenient integration into suitable DC power systems.

Built-In Protection Features

Integrated protection features help safeguard the injector and connected equipment against electrical and operating faults. These include overcurrent, overload, overvoltage, and low-voltage detection (LVD) protection.

The unit is designed for operation in temperatures from -4°F to 140°F (-20°C to +60°C), making it suitable for a range of demanding installation environments.

Key Features

• DC-to-DC PoE+ injection for DC-powered network installations
• 54VDC, 30W IEEE 802.3af/at Class 4 PoE+ output
• Supports Ethernet data rates up to 10 Gigabit
• Compatible with 10/100/1000 Mbps, 2.5G and 5G Ethernet
• Removable DC input terminal supporting up to 12 AWG conductors

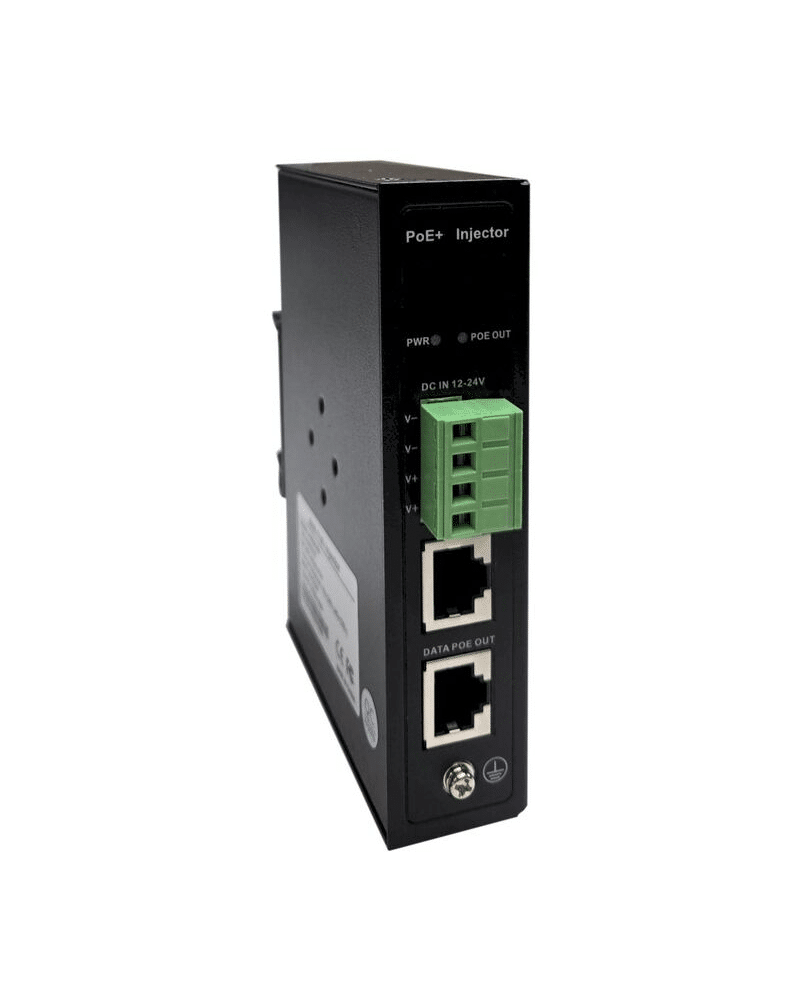

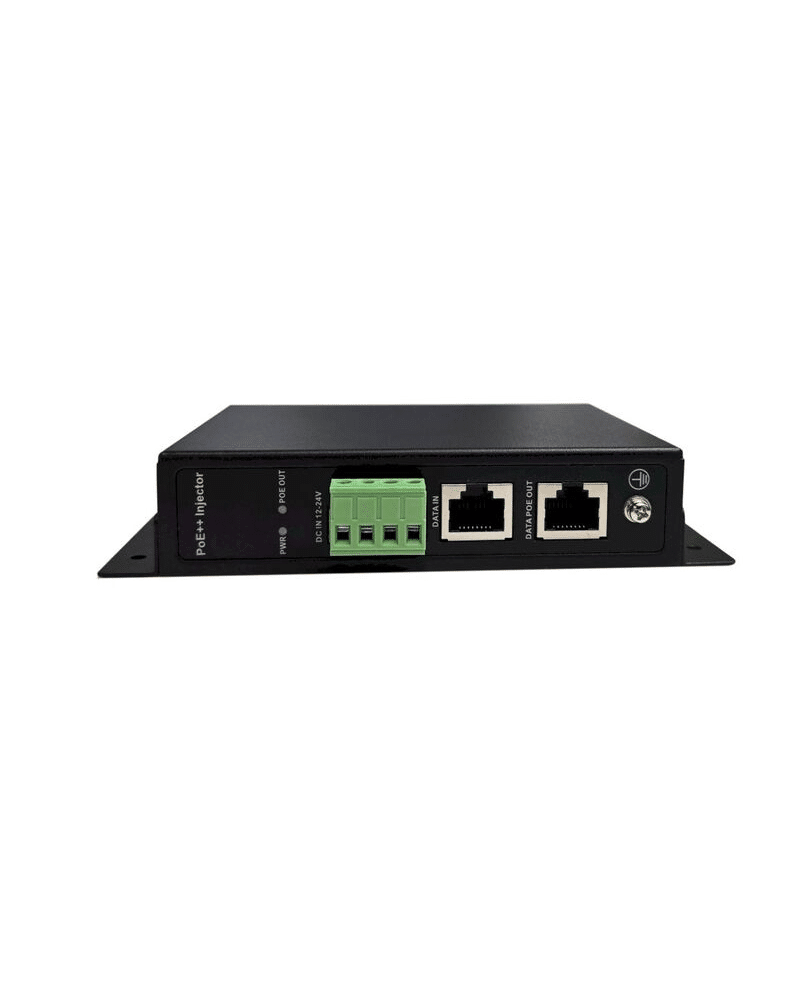

• Shielded RJ45 Data In and PoE Out connections
• Metal enclosure with DIN-rail and wall-mount brackets
• Built-in electrical protection features
• Suitable for solar, battery, wireless, security, vehicle, and marine applications

Technical Specifications

• Manufacturer: Tycon Systems Inc. / Tycon Power®
• Model: TP-DC-12AT30-10G
• Product Type: DC-to-DC PoE+ Injector
• Input Voltage: Advertised as 10–30VDC; specified operating range is 11–29VDC
• Input Current: Up to 3A
• PoE Output Voltage: 54VDC
• Maximum PoE Output Power: 30W
• PoE Standard: IEEE 802.3af/at, Class 4
• Ethernet Data Rates: 10/100/1000 Mbps, 2.5G, 5G, and 10G
• Data Connectors: Shielded RJ45 Data In and PoE Out
• DC Input Connector: Removable wire terminal, up to 12 AWG
• Minimum Efficiency: 80%
• Operating Temperature: -4°F to 140°F (-20°C to +60°C)
• Operating Humidity: 5%–80%, non-condensing
• Housing: Metal
• Mounting Options: DIN rail or wall mount
• Dimensions (L × W × H): 4.7 × 3.4 × 1.1 inches
• Unit Weight: Approximately 0.84 lb

Typical Applications

• Solar-powered networking systems
• Battery-powered communication infrastructure
• Wireless access points and network equipment
• IP security and surveillance installations
• Vehicle and marine networking systems
• Industrial Ethernet installations

Package Contents: One Tycon Power TP-DC-12AT30-10G DC PoE+ injector. Confirm included mounting hardware and accessories with the supplier before listing them as guaranteed package contents.

Important Compatibility Note: The manufacturer advertises a 10–30VDC input, while the technical manual specifies an operating range of 11–29VDC at up to 3A. Verify the power source voltage and the powered device’s PoE requirements before installation.

The TP-DC-12AT30-10G offers a practical solution for installations requiring DC-powered, high-speed Ethernet connectivity with up to 30W of standardized PoE+ power.
