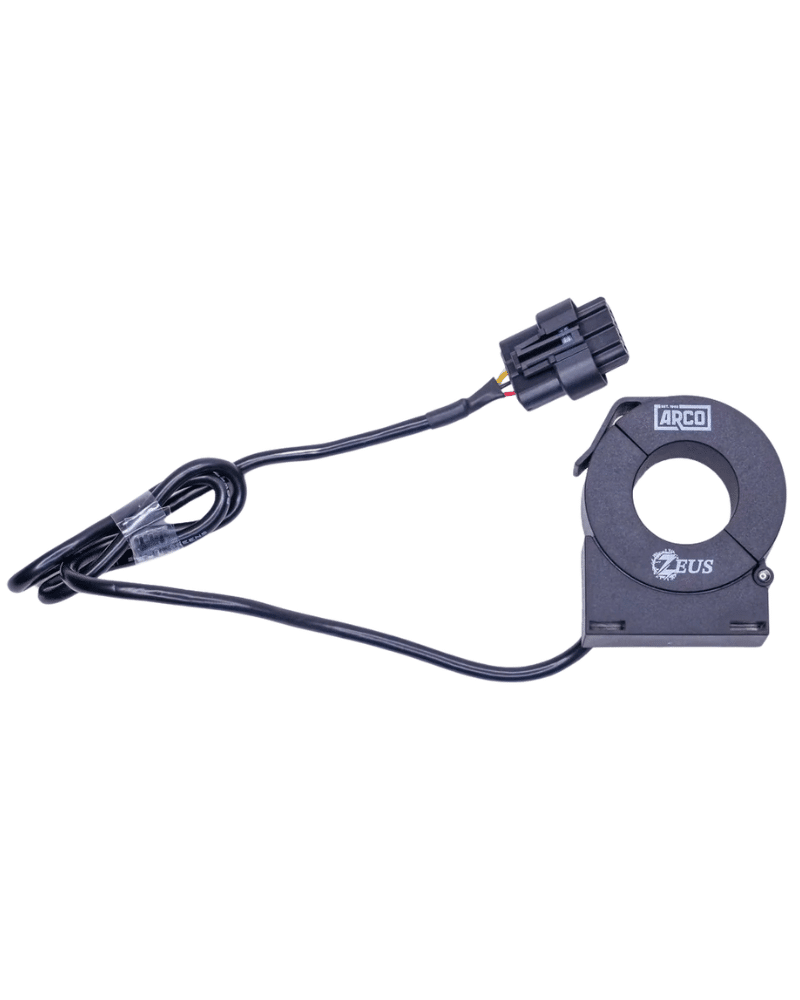

Arco Zeus Omega Hall Effect Sensor — Alternator Drive Module

Description

The Zeus Omega Hall Effect Sensor for the Alternator Drive Module (AZHSADM) provides direct, real-time alternator current sensing without the need for a traditional shunt. Designed specifically for the Zeus Omega Alternator Drive Module, this optional sensor provides current data directly to the Zeus Omega system for improved monitoring, regulation, and diagnostics.

Using Hall Effect sensing technology, the AZHSADM measures alternator current without interrupting the main current path. Unlike a traditional analog shunt, the sensor does not need to be installed in series with the main conductor, sized according to maximum system current, or calibrated during commissioning.

The AZHSADM connects directly to the Zeus Omega Alternator Drive Module and provides real-time alternator current information to the system. This additional current data can improve state-of-charge monitoring and provide enhanced system diagnostics through the Zeus Omega system.

Key Benefits

The AZHSADM eliminates several of the installation and commissioning requirements associated with traditional shunt-based current sensing. Its non-contact Hall Effect design allows current measurement without placing a sensing device in the main current path.

The sensor provides:

• Direct alternator current sensing at the Alternator Drive Module
• No traditional shunt required
• No interruption of the main current path
• No shunt sizing required
• No calibration process required
• Real-time alternator current data
• Improved state-of-charge monitoring
• Enhanced system diagnostics
• Faster installation and commissioning

Designed for Zeus Omega

The AZHSADM is an optional accessory for the Zeus Omega Alternator Control System and is designed to connect to the Zeus Omega Alternator Drive Module (AZADM).

The sensor measures current at the alternator and sends that information into the Zeus Omega system. For installations requiring current monitoring at another point, the AZHSCM Hall Effect Sensor is available separately for the Zeus Omega Control Module.

For maximum system visibility, the AZHSADM and AZHSCM can be used together to monitor current at the Alternator Drive Module and Control Module.

Important Compatibility Information

The AZHSADM is designed for use with the Zeus Omega Alternator Drive Module (AZADM). A Zeus Omega system with an operational Alternator Drive Module is required.

This product is an optional accessory and is not the complete Zeus Omega Alternator Control System.

For a complete Zeus Omega installation, ARCO Marine offers the full Zeus Omega system, which includes the Control Module, Alternator Drive Module, AZ CAN Cable, power connection, fuses, and temperature sensor.

Product Information

Manufacturer: ARCO Marine
Product Line: Zeus Omega
Product Type: Hall Effect Current Sensor
Application: Alternator Drive Module
Part Number: AZHSADM
Sensor Location: Alternator Drive Module
Current Sensing Method: Hall Effect
Shunt Required: No

The AZHSADM is an accessory intended to provide additional current sensing capability for Zeus Omega installations, helping provide more complete alternator monitoring and system diagnostics.
