Arco Zeus Omega Hall Effect Sensor — Control Module

Description

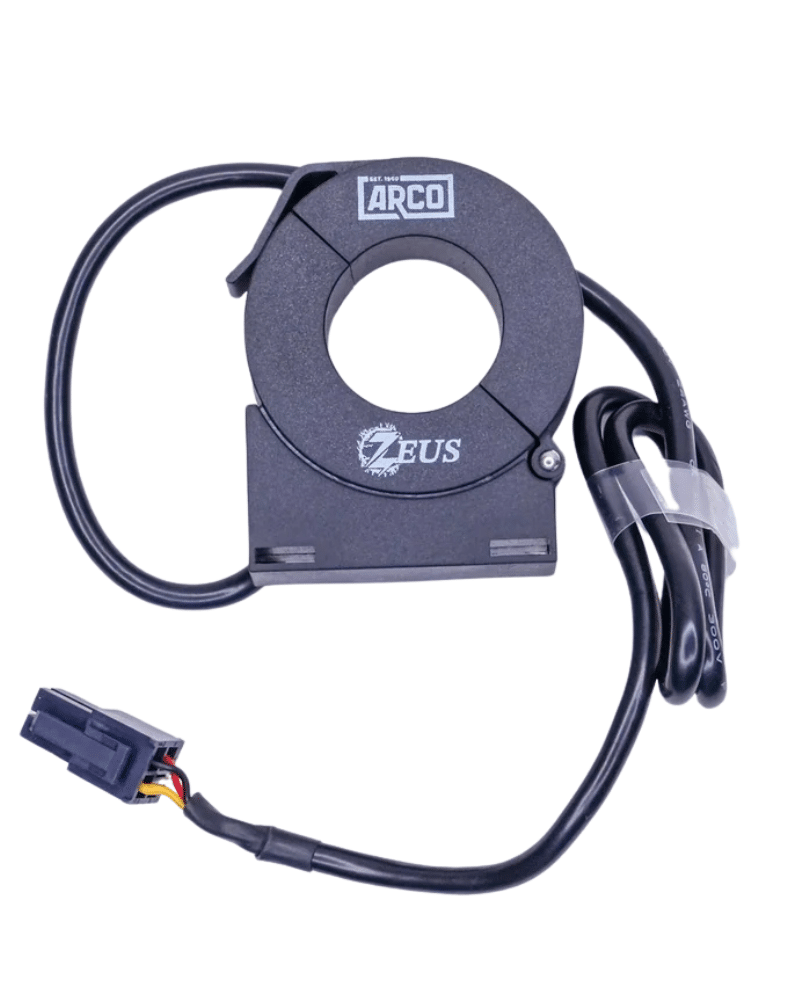

Zeus Omega Hall Effect Sensor – Control Module (AZHSCM)

The Zeus Omega Hall Effect Sensor – Control Module (AZHSCM) is designed to provide direct current sensing at the Zeus Omega Control Module without requiring a traditional shunt. This optional accessory provides current data directly to the Control Module, helping support real-time monitoring and enhanced system diagnostics.

The AZHSCM uses Hall Effect sensing technology to measure current at the Control Module. This provides an alternative to traditional shunt-based current measurement and can simplify current-sensing integration within a Zeus Omega system.

Key Features

• Direct current sensing at the Zeus Omega Control Module
• No traditional shunt required
• Provides real-time current data
• Supports battery or alternator current sensing at the Control Module
• Helps enhance Zeus Omega system monitoring and diagnostics
• Designed specifically for the Zeus Omega Control Module
• Optional accessory for the Zeus Omega Alternator Control System
• Part Number: AZHSCM

Designed for Zeus Omega

The AZHSCM is designed to work with the Zeus Omega Control Module (AZCM). It provides current-sensing capability at the Control Module and can be used as part of a Zeus Omega system installation where additional current monitoring is required.

The Zeus Omega system can use Hall Effect sensors at different points within the system. The AZHSCM is specifically intended for current sensing at the Control Module, while the AZHSADM is designed for current sensing at the Alternator Drive Module.

Hall Effect Current Sensing

Unlike a traditional shunt, Hall Effect current sensing does not require the measured current to pass through a conventional shunt device. The AZHSCM provides current measurement at the Control Module and supplies this information to the Zeus Omega system for monitoring and diagnostic purposes.

Compatibility

The AZHSCM is designed for use with the Zeus Omega Control Module (AZCM) and is an optional accessory for the Zeus Omega Alternator Control System.

For applications requiring current sensing at both the Control Module and Alternator Drive Module, the AZHSCM may be used together with the Zeus Omega Hall Effect Sensor for the Alternator Drive Module (AZHSADM).

Product Specifications

Product: Zeus Omega Hall Effect Sensor – Control Module
Part Number: AZHSCM
Sensor Type: Hall Effect Current Sensor
Installation Point: Zeus Omega Control Module
Application: Zeus Omega Alternator Control System
Current Sensing: Battery or alternator current at the Control Module
Traditional Shunt Required: No

Important

The AZHSCM is the Hall Effect Sensor designed for the Zeus Omega Control Module. It should not be confused with the AZHSADM, which is designed for current sensing at the Zeus Omega Alternator Drive Module.

Please verify system compatibility and installation requirements before purchasing or installing the product.
