Designed for photovoltaic solar systems with high mechanical requirements and extreme weather conditions.

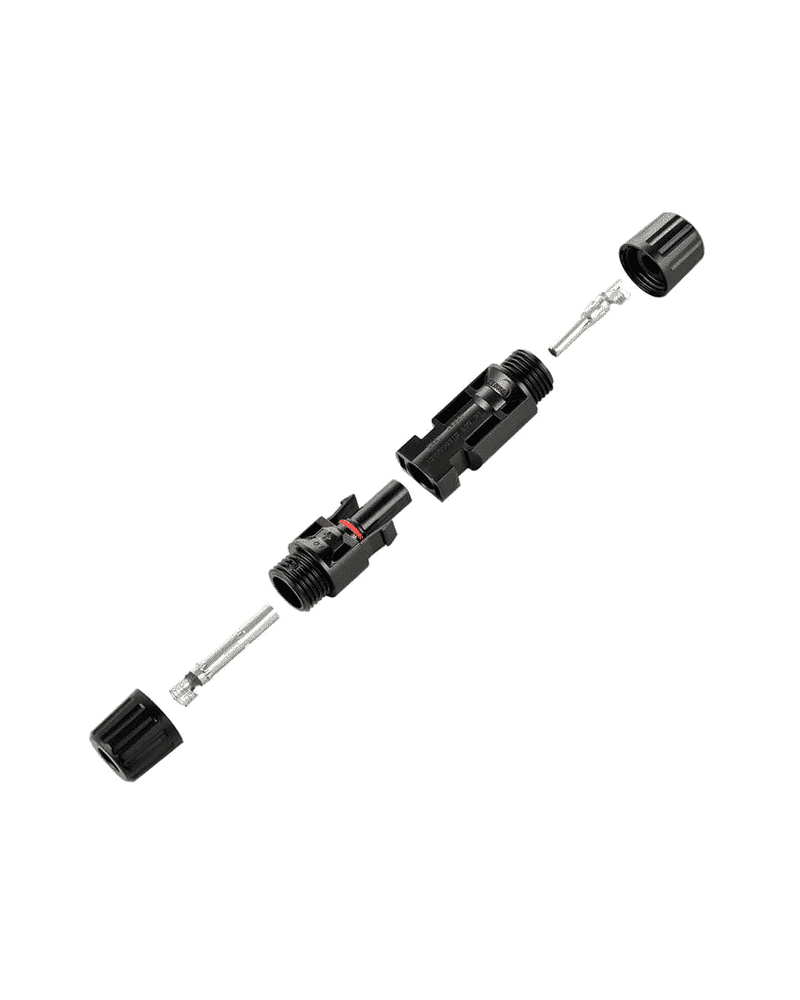

Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument.
Waterproof and dustproof.
Made by high quality materials.
Specifications
Rated Current: 30A
Maximum Voltage: 1000VDC
Waterproof: IP67
Wiring Range: 10AWG, 12AWG
Insulation Material: PA/PC
Contact Material: Tinned Copper
Temperature Range: -40°C ~ +90°C

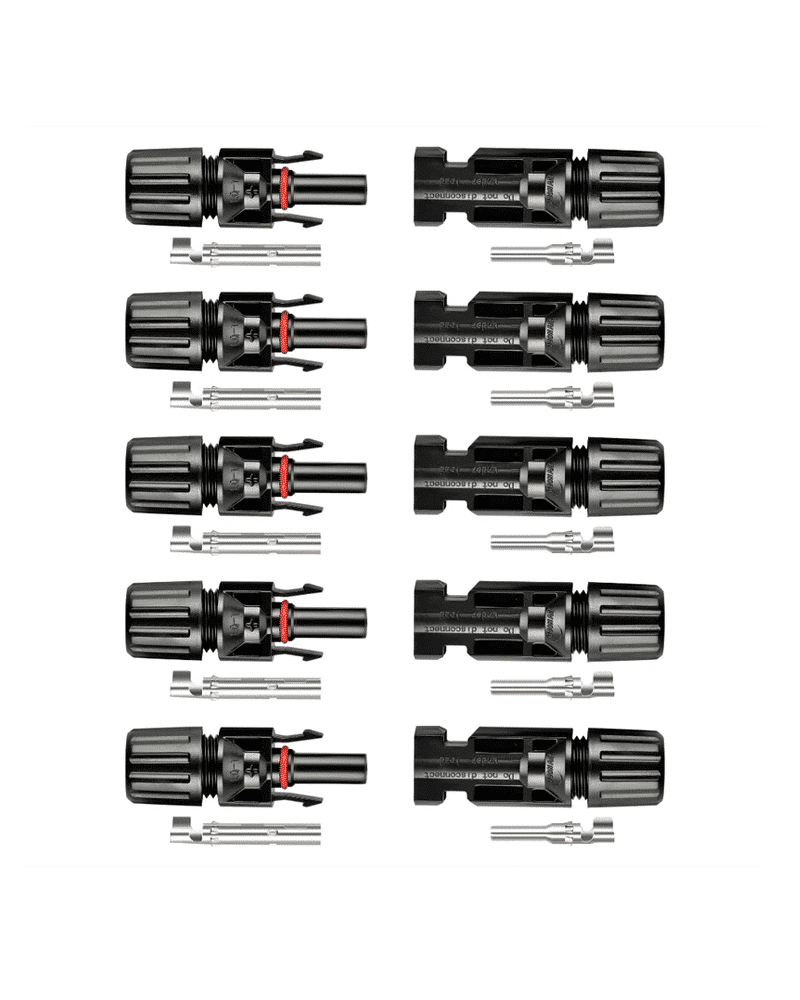

5 Pairs Package Includes
5pcs female connectors
5pcs male connectors
Additional information
Be Advised: Weight and Dimensions listed in this section may include packaging for shipping purposes. If you need exact weight and dimensions of this product, first review the product description and datasheet. If you are unable to locate these specs, please call our team at 720-594-5272.
