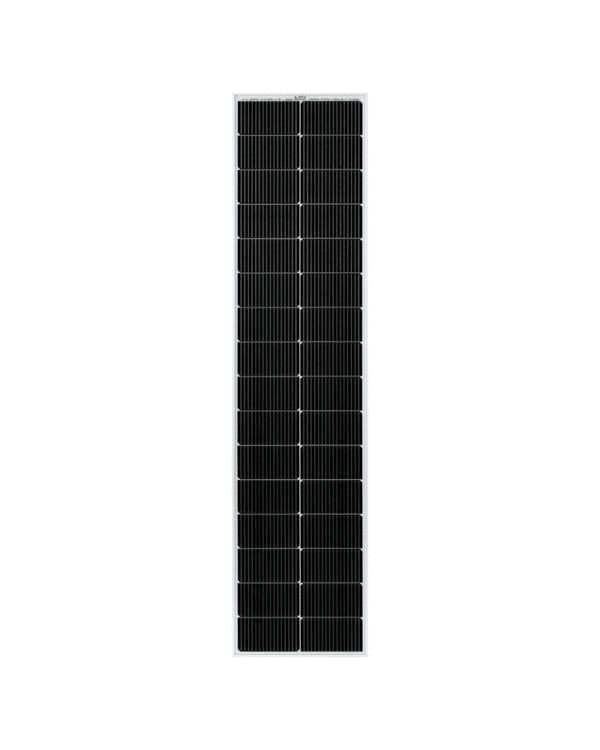

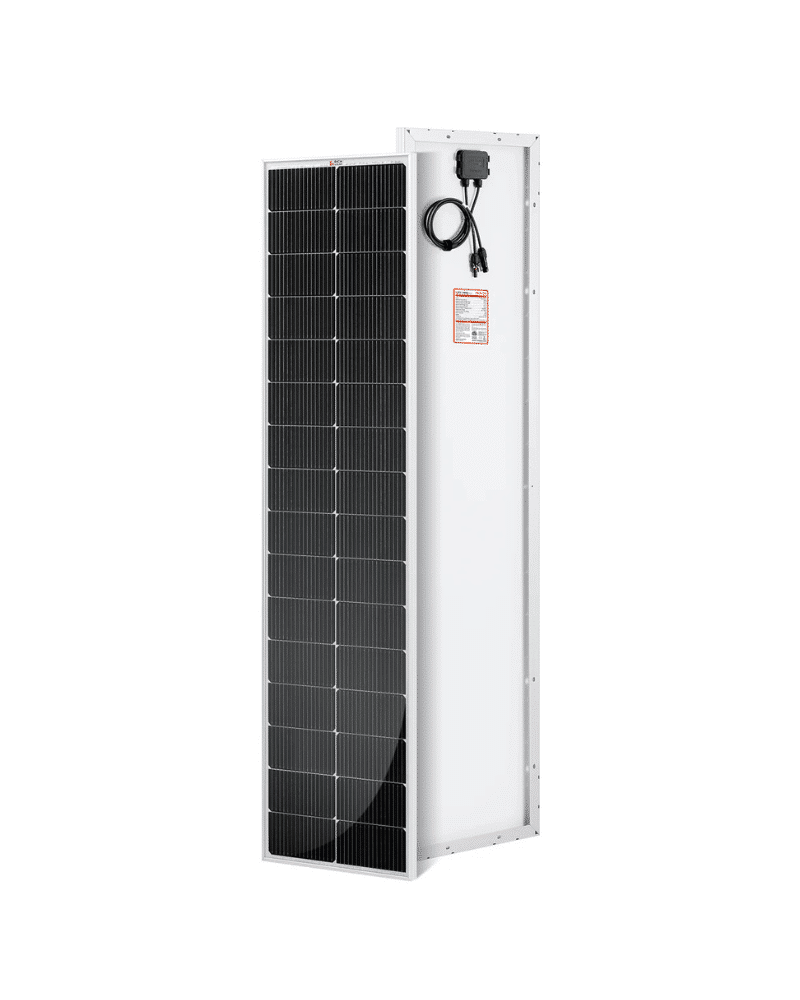

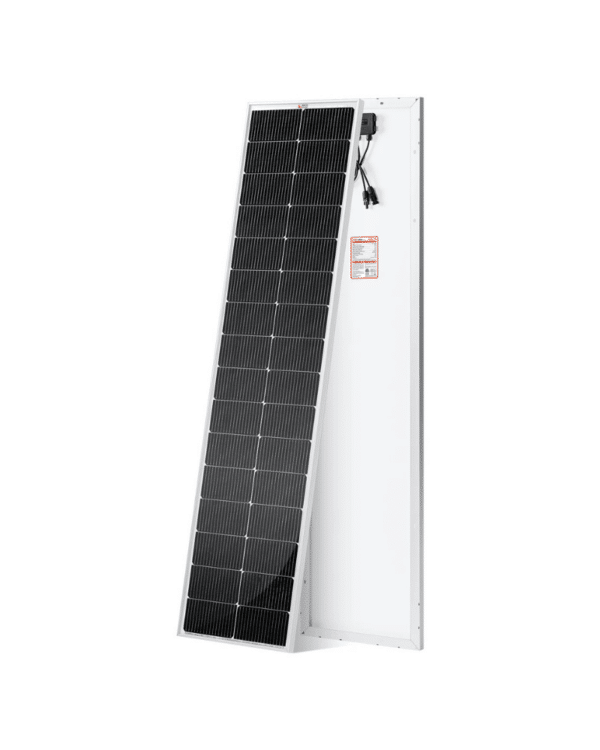

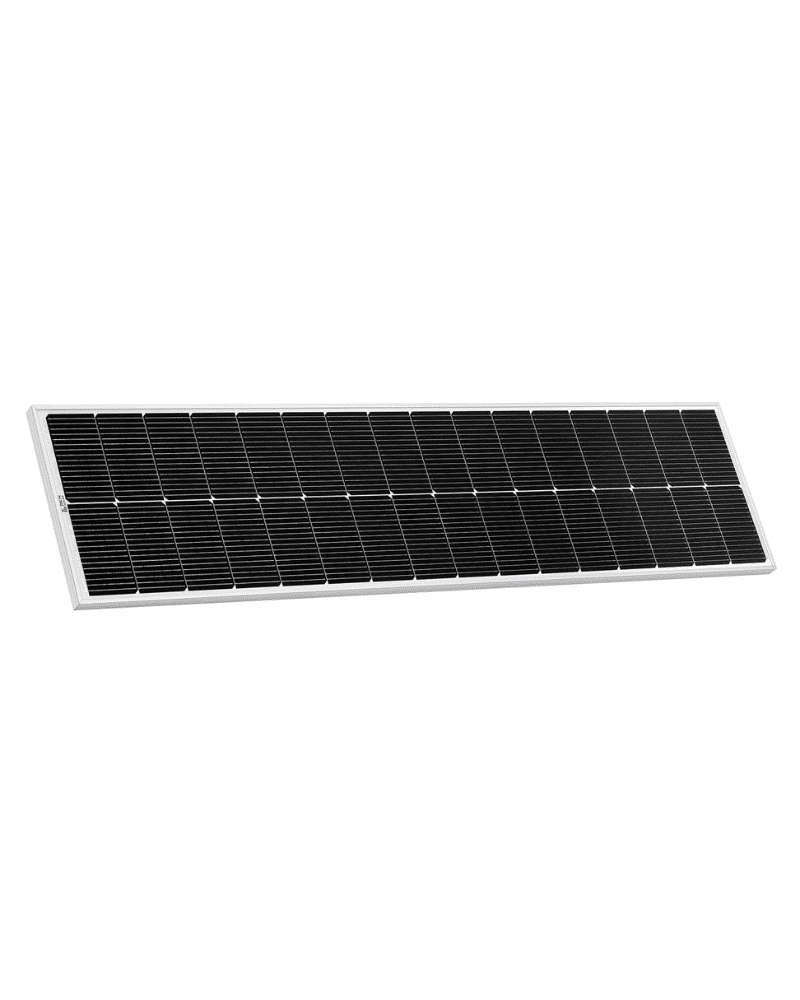

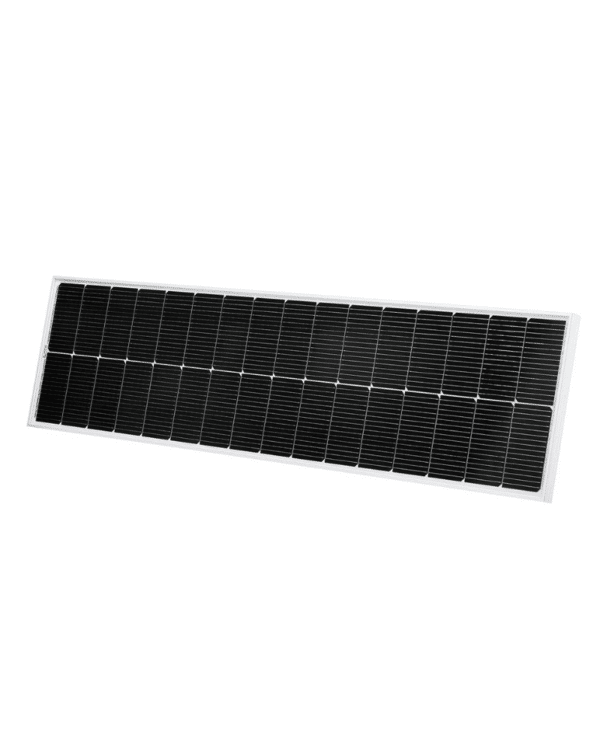

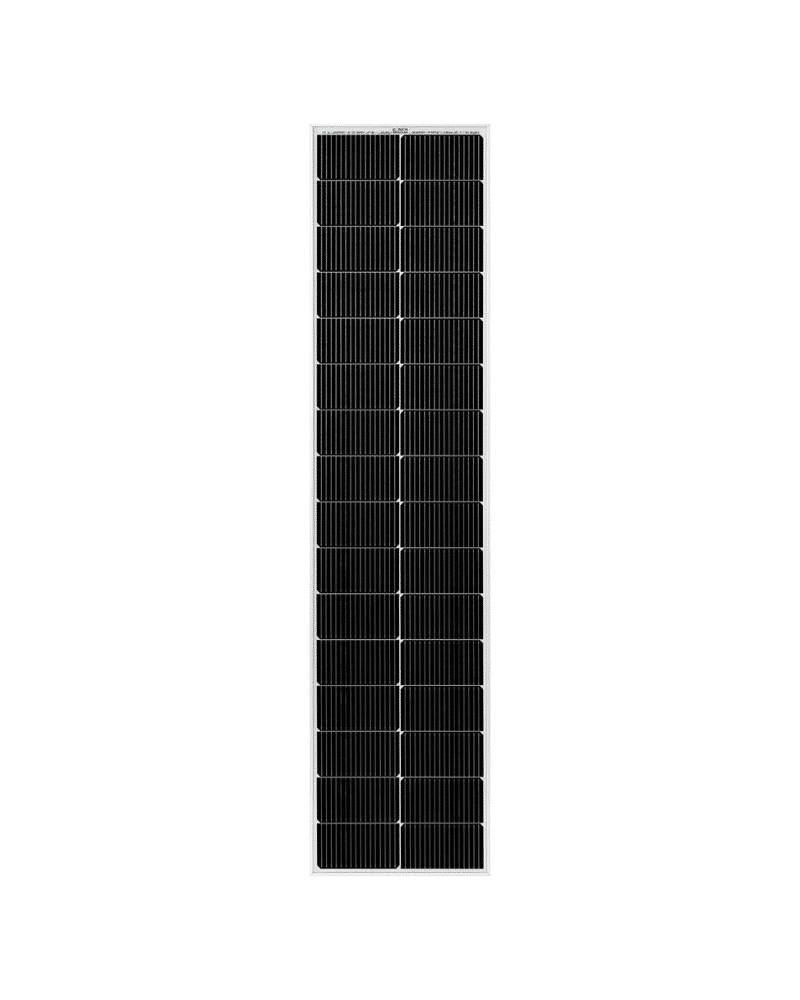

Rich Solar MEGA 12V 130 Watt Slim Solar Panel

$169.99

Specifications:

  • Maximum Power(Pmax): 130W
  • Maximum Power Voltage(Vmp): 18.1V
  • Maximum Power Current(Imp): 7.18A
  • Open Circuit Voltage(Voc): 22.1V
  • Short Circuit Current(Isc): 17.62A
  • Maximum System Voltage(Vmax): 1000 VDC
  • Maximum Series Fuse Rating: 10A
  • Module Efficiency: 19.7%
  • Temperature Range: -40~ +185℉



-

SKU: RS-M130SL Category: Tag:

Description

Features

  • 15-busbar solar cell configuration

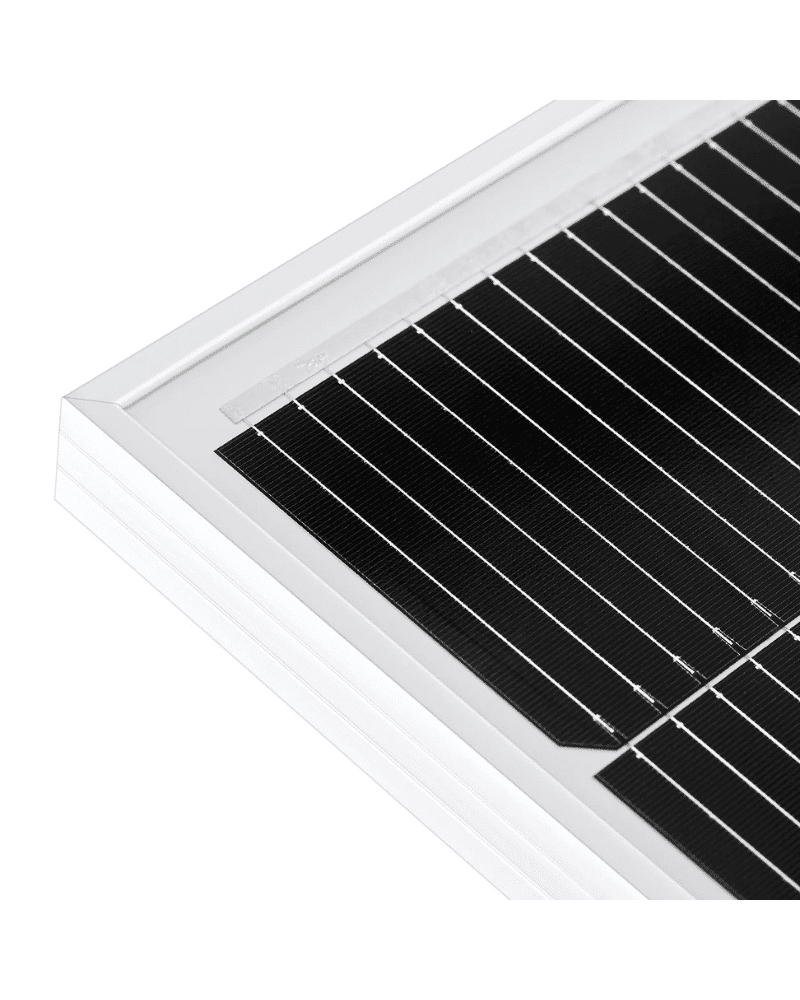

  • Lightweight, anodized aluminum frame
  • High Transmission, AR (anti-reflective) Coated Tempered Glass

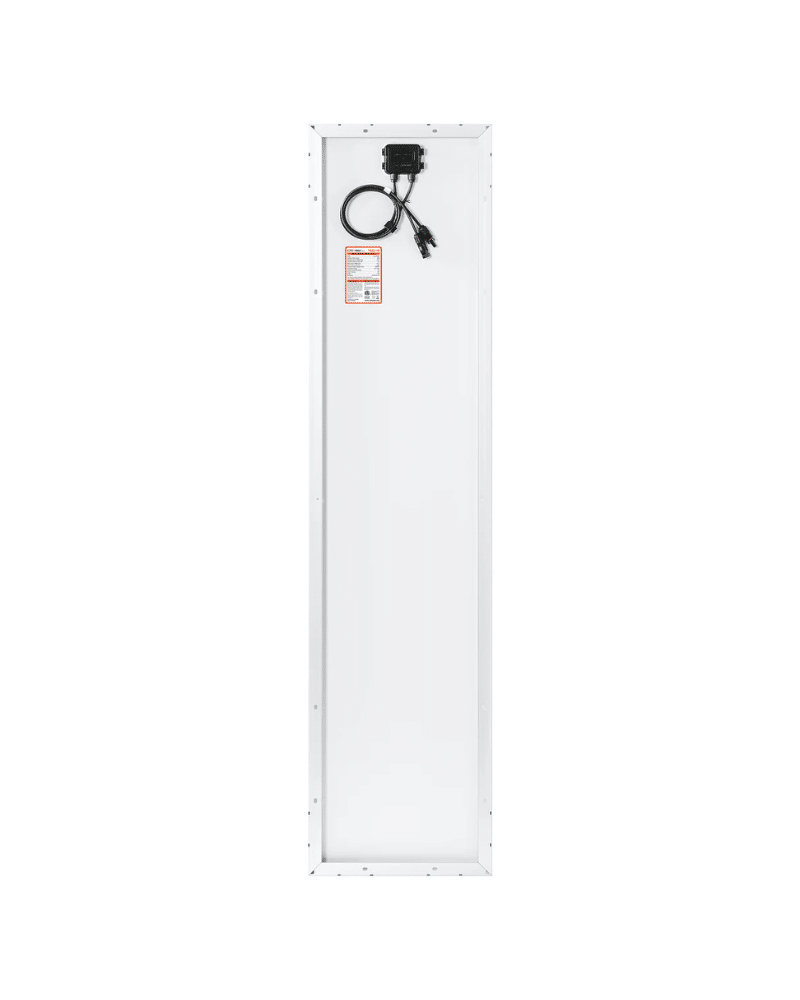

  • Plug-and-play junction box
  • Industry-standard quick-connect cables work in series or parallel
  • Excellent low-light performance on cloudy days, mornings and evenings
  • Highly reliable due to stringent quality control (Over 30 in-house tests (UV, TC, HF, and many more), PID resistant, 100% EL double inspection)
  • Certified to withstand challenging environmental conditions (2400 Pa wind load, 5400 Pa snow load, 35 mm hail stones at 97 km/h)

Installation

  • Easy installation and handling for various applications (high-end off-grid and mobile applications)
  • Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts and tilt mounts
  • Compatible with on-grid and off-grid inverters

Additional information

Weight 17 lbs

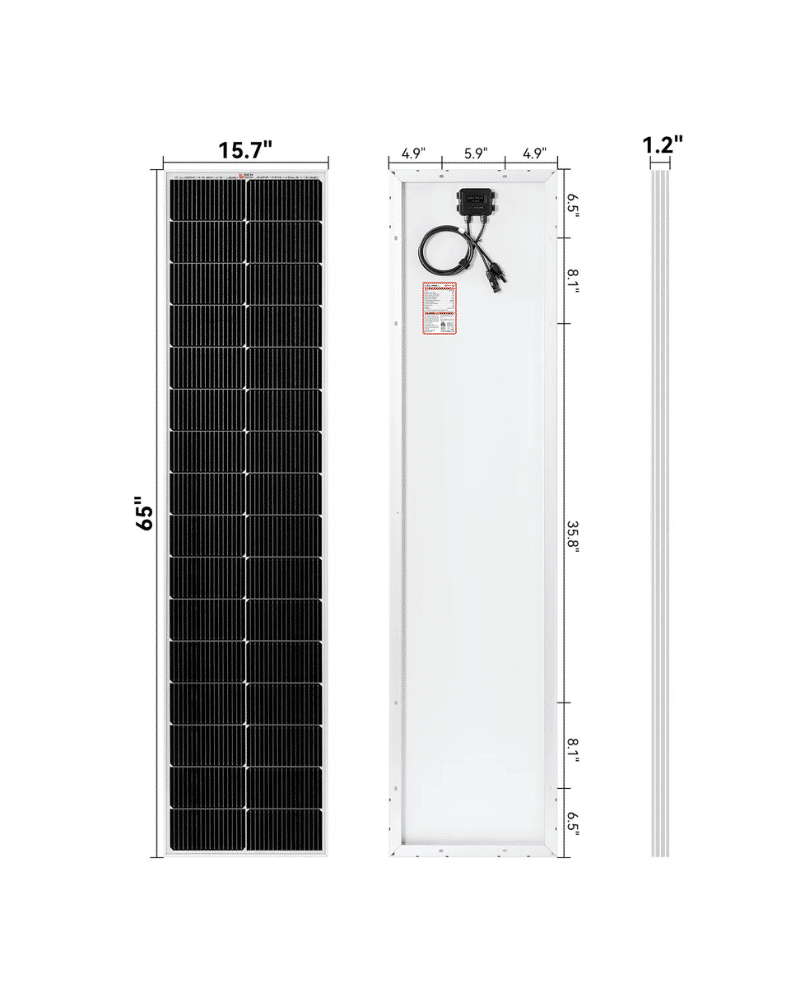

Dimensions Length: 65 in Width: 15.7 in Height: 1.2 in
