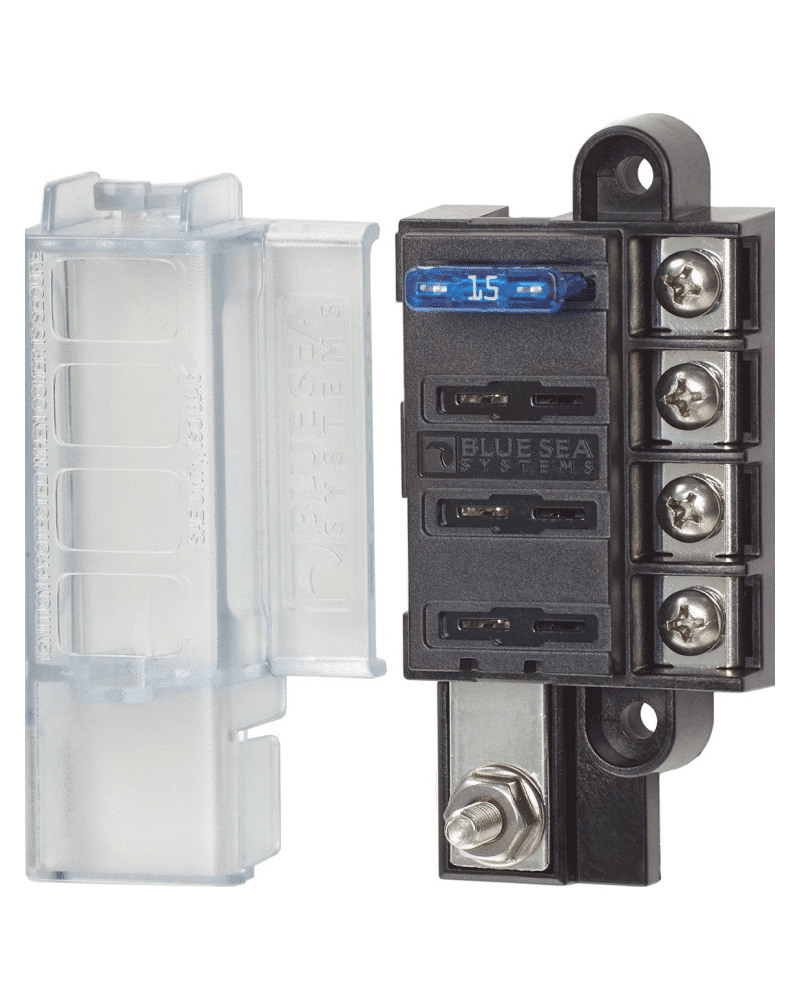

Fuse Block ST Blade Mini 4 Circuit – Lynx BMS Distri.

Fuse Block ST Blade Mini 4 Circuit – Lynx BMS Distri.

$38.02

Circuits: 4
Maximum Amperage: 100 A per block / 30 A per circuit
Maximum Voltage: 32 V DC
Mounting: #8 (M4) screws
Terminal Stud Torque: 24 in-lb (2.71 Nm)
Terminal Screw Size: #8-32 with captive star lock washer

-

SKU: 5045-BSS Categories: Circuit Protection, DC Distribution Tag: Fuse Block Brand: Blue Sea Systems

Description

Provides surface mount circuit protection for ATO®/ATC® Fuses in a compact footprint.

Ignition protected when cover is secure –meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
Single side design allows wire entry from one side to minimize footprint
Insulating cover meets ABYC/USCG insulation requirements
Tin-plated copper buses and fuse clips
Accepts ring or snap fork type terminals
Includes 4 write-on circuit labels
Fuses sold separately

Additional information

Weight	0.25 lbs
Dimensions	Length: 1.01 in Width: 1.01 in Height: 1.01 in
