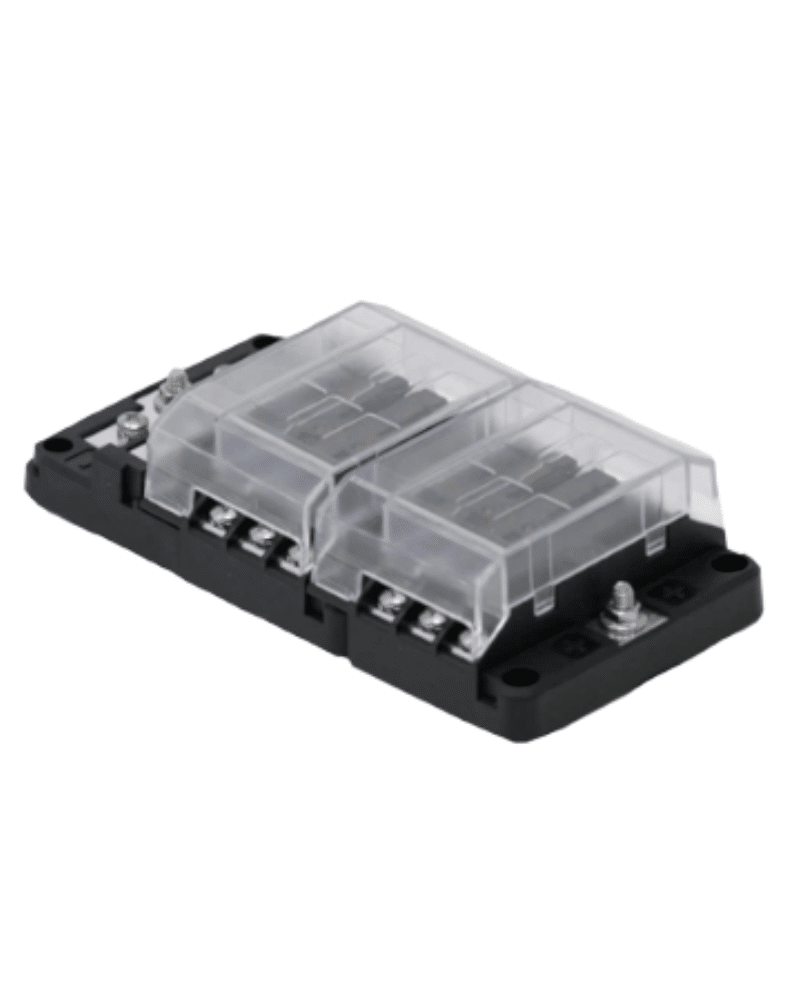

EGIS RT Fuse Block 12 Circuit with Ground

Description

The EgisMobile 8026 RT Fuse Block is a rugged and reliable power distribution solution designed for demanding electrical applications. With 12 fused circuits and an integrated ground return block, this unit simplifies wiring while providing dependable circuit protection.

Built using high-temperature materials and stainless-steel self-locking hardware, the 8026B is engineered to perform in harsh environments such as automotive, marine, RV, emergency, and commercial vehicle installations. Integrated LED indicators illuminate when a fuse is blown, allowing fast troubleshooting and minimizing downtime.

This fuse block supports standard automotive blade fuses and offers a modular layout that helps keep electrical systems neat, safe, and easy to maintain. Ideal for professional installers and serious DIY builders who require durability and reliability.

Key Features

• 12 independently fused output circuits
• Integrated 12-position ground block
• LED blown-fuse indicators for fast fault detection
• Heavy-duty, corrosion-resistant hardware
• Modular design for flexible installation
• Optional circuit labeling (labels not included)

Specifications

• Maximum Total Current: 100 A
• Maximum Current per Circuit: 30 A
• Operating Voltage: 0–36 V DC
• Maximum Output Wire Size: 10 AWG
• Fuse Type: ATO / ATC / ATF blade fuses
• Fuses Included: No

Ideal Applications

• Automotive and commercial vehicles
• Marine electrical systems
• RVs, vans, buses, and overland builds
• Emergency and service fleet vehicles

Additional information

Downloads

• Datasheet
