$6.30
The Egis Mobile 4730 Short Stop Circuit Breaker is a marine-grade, surface mount circuit protection device designed to safeguard low and medium-amp electrical circuits in demanding environments such as marine vessels, emergency vehicles, work trucks, RVs, buses, and off-road vehicles.
Featuring a Type III manual reset push-to-reset design, this breaker allows for quick and easy restoration of power once an over-current fault has been cleared. Its compact surface-mount format makes installation straightforward in tight or crowded electrical panels.
Built for durability, the unit offers IP66 weatherproof protection against dust and water intrusion, ensuring long-term reliability even in harsh outdoor or marine environments. It is ignition protected, making it safe to install in engine compartments or enclosed spaces where explosive gases may be present.
The breaker supports 12 V and 24 V DC systems (rated up to 28 V DC), providing superior protection compared to traditional fuses by interrupting over-current and short circuit events that can damage wiring insulation. It has a high interrupt capacity (up to 2,500 A at 12 V and 1,500 A at 24 V).
Built with corrosion-resistant locking hardware and reinforced mounting tabs, it’s engineered for secure, vibration-resilient installation — ideal for rugged applications.
Key Features:

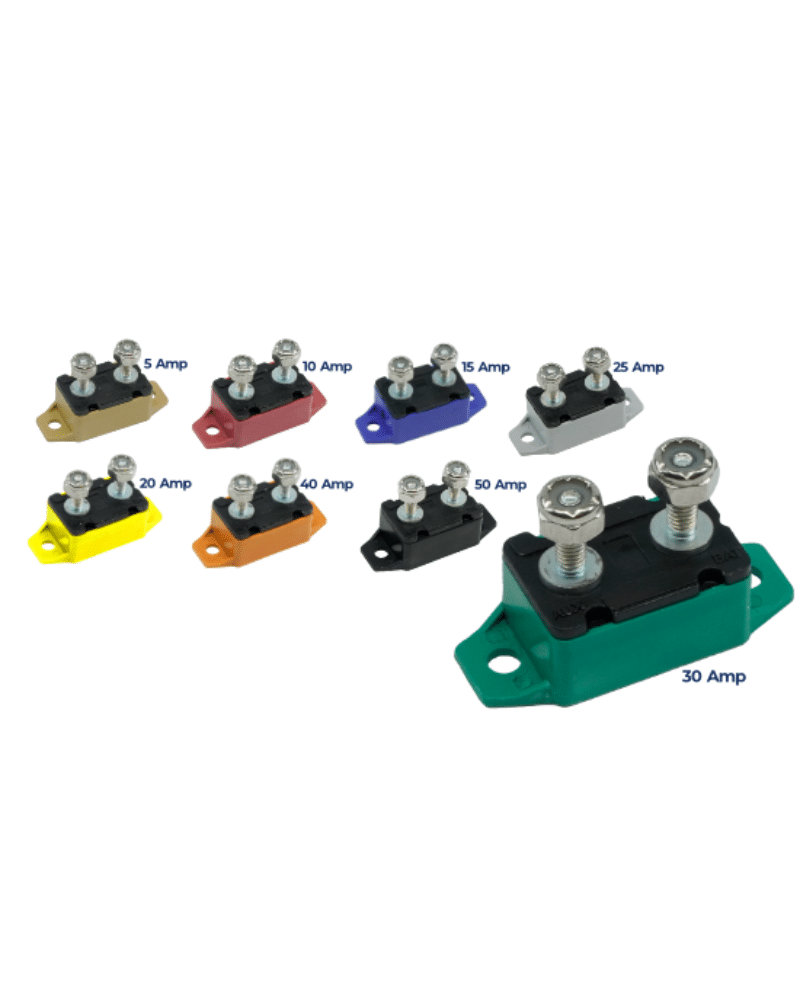

Available in multiple amp ratings (5 A, 10 A, 15 A, 20 A, 25 A, 30 A, 40 A, and 50 A) to match your circuit protection needs.
| Weight | 0.35 lbs |
|---|---|
| Dimensions | Length: 5 in Width: 3 in Height: 3 in |
| Amperage | 5 Amp, 10 Amp, 15 Amp, 20 Amp, 25 Amp, 30 Amp, 40 Amp, 50 Amp |
