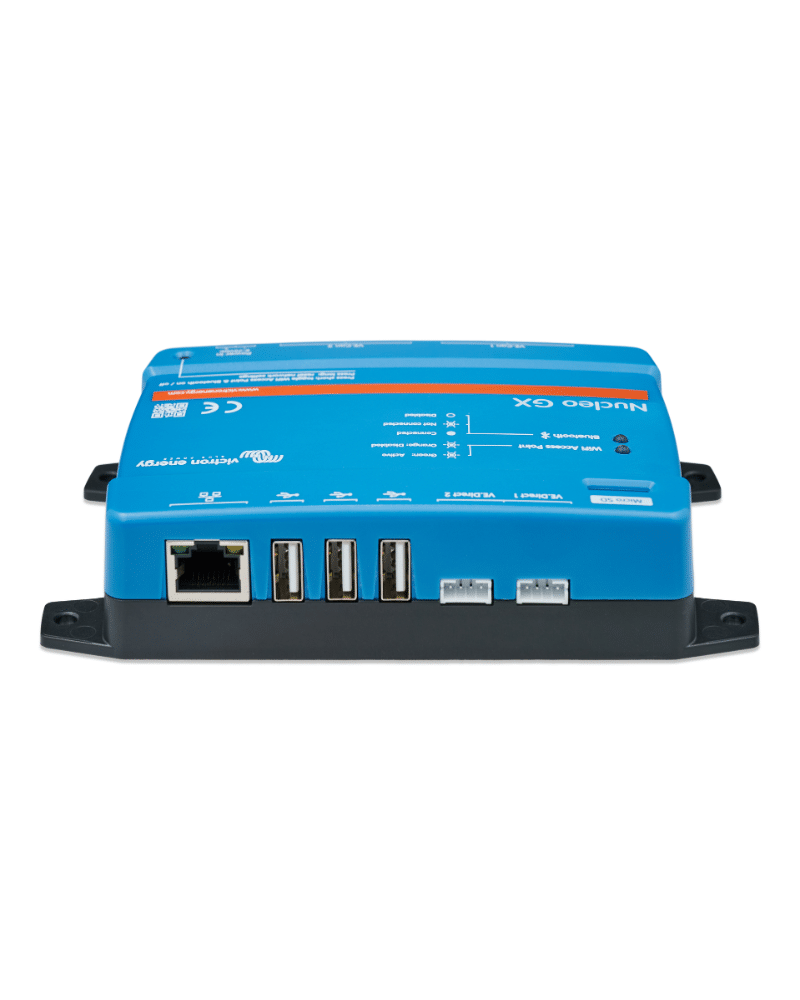

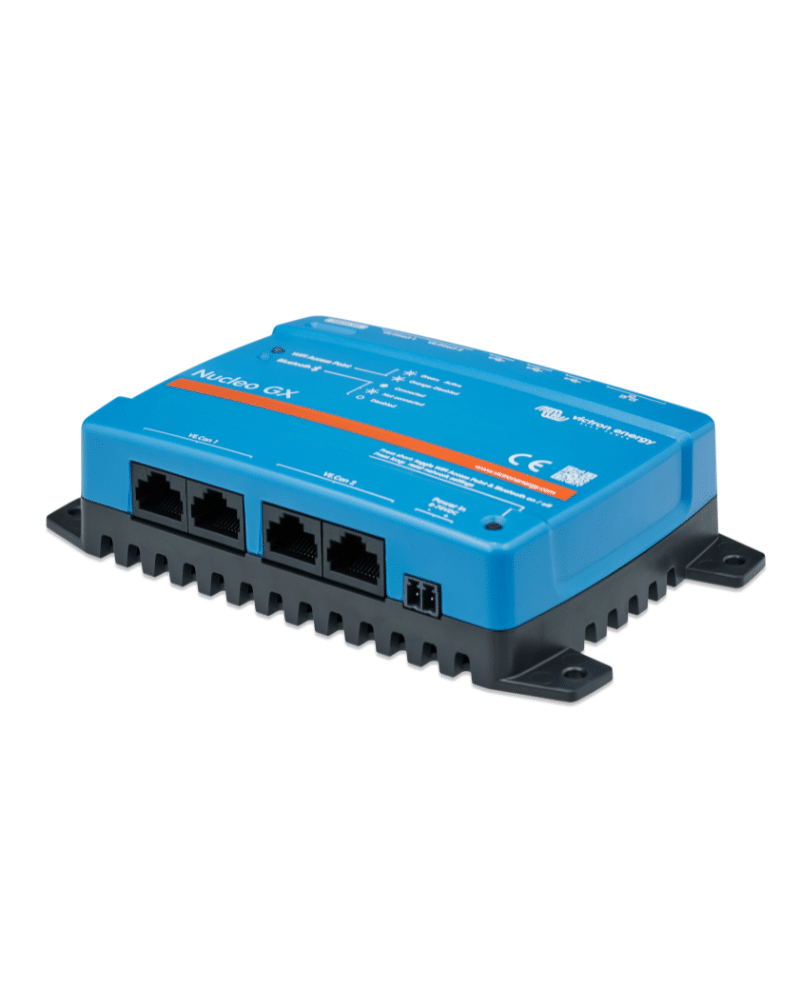

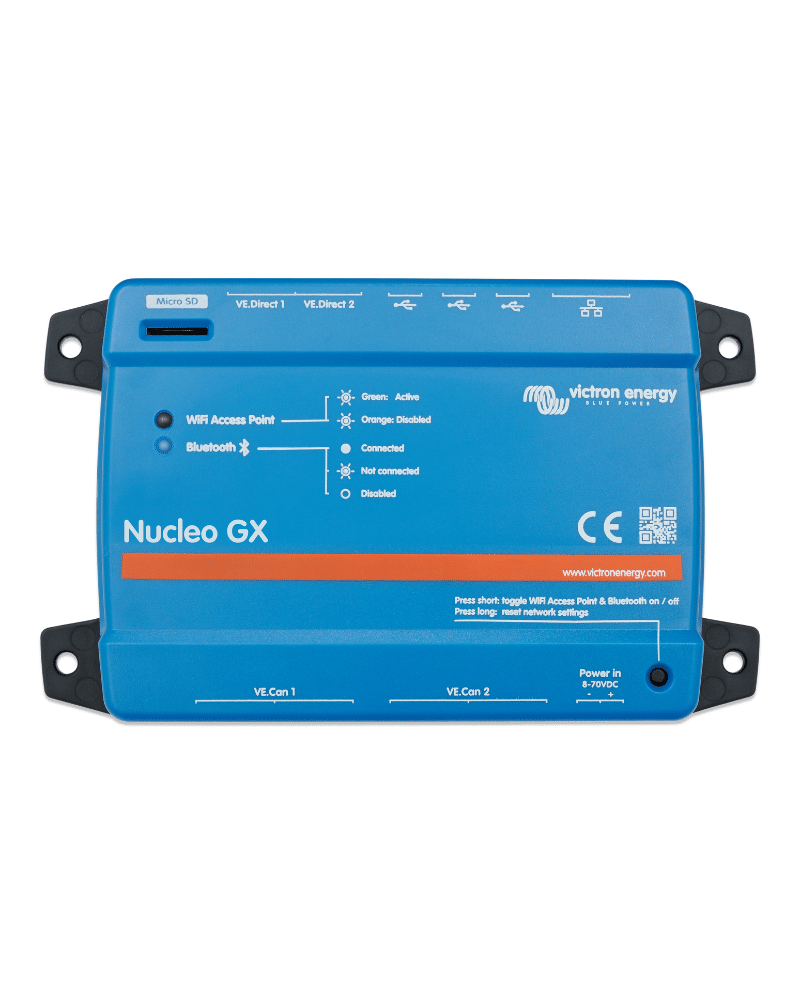

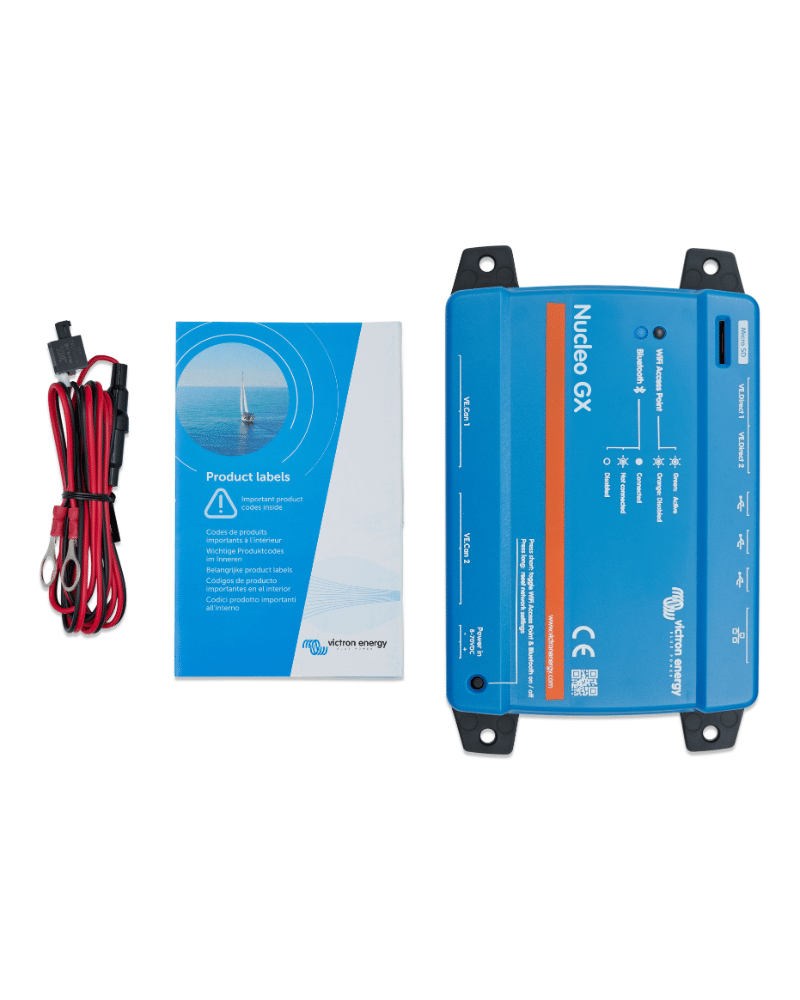

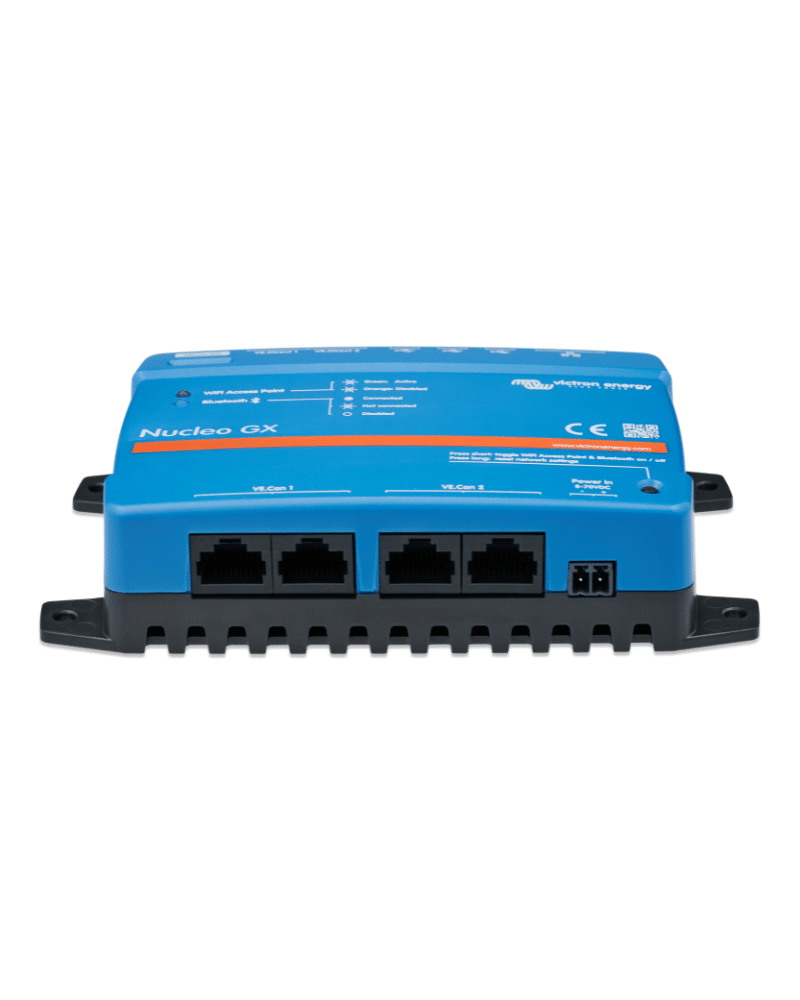

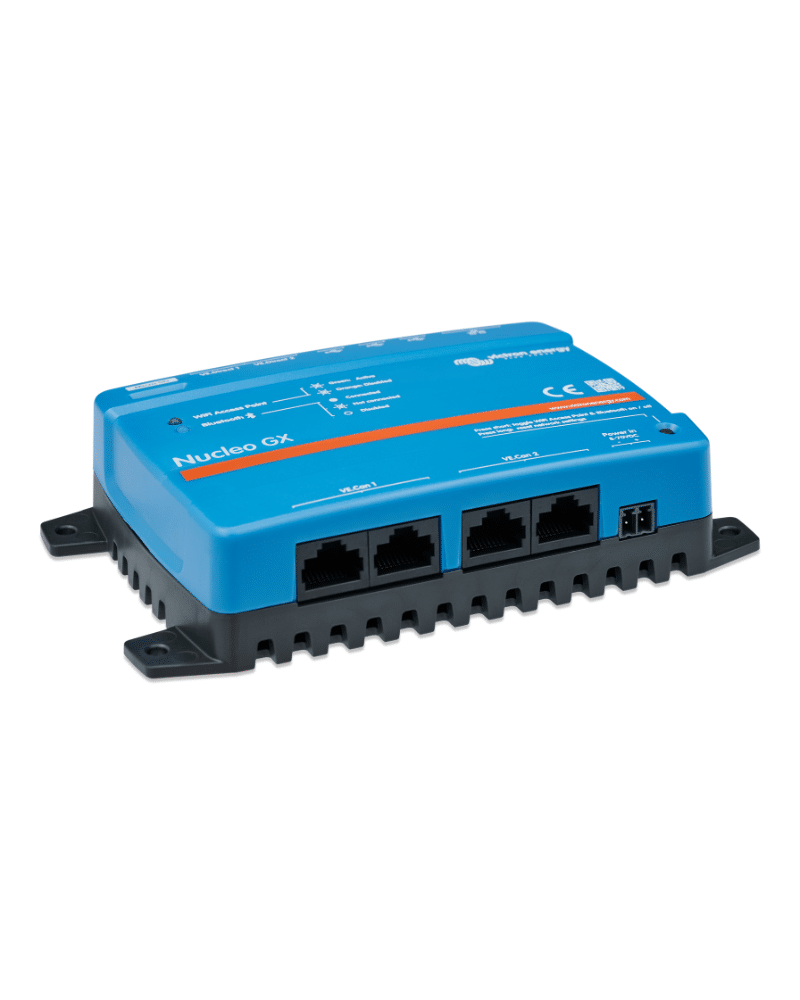

The Victron Energy Nucleo GX is a compact, high-performance communication center designed to provide complete monitoring, control, and remote management of Victron Energy systems. Built with a powerful quad-core processor, it delivers fast system performance comparable to the Ekrano GX while offering a streamlined feature set at a more economical price.
The Nucleo GX serves as the central hub of your energy installation, allowing all connected Victron devices to communicate seamlessly. It continuously monitors battery status, solar production, AC input, power consumption, generator operation, and other critical system data in real time. Whether you’re managing an off-grid power system, an Energy Storage System (ESS), or a mobile installation, the Nucleo GX provides reliable system oversight from virtually anywhere.
Remote monitoring and configuration are made simple through the Victron Remote Management (VRM) Portal, VictronConnect App, or any standard web browser. The device supports Ethernet, Wi-Fi, and Bluetooth connectivity, making installation and commissioning quick and flexible. For local monitoring, an Android device can be used as a GX WiFi Display without requiring an HDMI connection.
The Nucleo GX supports up to 25 VE.Direct devices, multiple VE.Can devices, and USB accessories for additional functionality. While it does not include built-in digital inputs, relay outputs, or VE.Bus connectivity, these capabilities can be added using optional Victron accessories such as the MK3-USB Interface, GX I/O Extender 150, or GX Tank 140.
Its compact enclosure allows for wall or DIN rail mounting, making it suitable for residential, commercial, marine, and industrial energy installations
| Weight | 0.64 lbs |
|---|---|
| Dimensions | Length: 3.07 in Width: 6.06 in Height: 1.89 in |
