$181.40

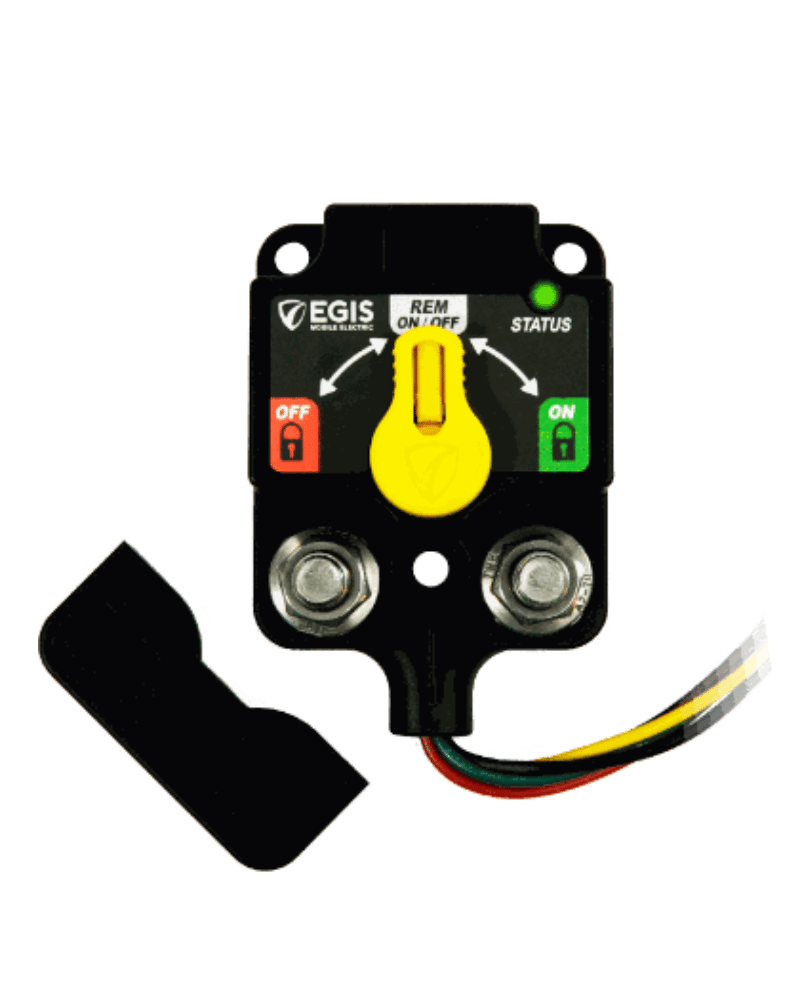

The Egis XD Single Flex Relay/ACR/LVD with Knob is a versatile high-current battery management and switching solution designed for demanding mobile electrical systems. With a 500 Amp continuous current capacity and up to 1,500 Amps of maximum cranking current, it provides reliable power switching for a wide range of applications.
The XD Single can be configured to operate as a Relay/Battery Disconnect, Automatic Charging Relay (ACR), or Low Voltage Disconnect (LVD). This flexible design allows it to be used for battery isolation, charging management, and protection against excessive battery discharge.
A front-facing 3-position manual override knob provides convenient control of the relay, allowing the unit to be manually switched as needed. The integrated LED indicator provides a quick visual indication of the device status.
The unit operates across an 8–36 VDC voltage range, making it suitable for both 12-volt and 24-volt electrical systems. Programmable DIP switches allow the device to be configured according to the requirements of the electrical system.
Built for demanding environments, the XD Single features IP67/IP6K9K sealed construction for protection against water, dust, and other environmental conditions. Stainless steel terminal studs and hardware provide durable connections, while the protective terminal cover helps protect the electrical connections from accidental contact.
The tinned-wire connection leads provide a practical connection solution for installations where flexible wiring is required. The compact design also helps conserve valuable installation space.
The Egis XD Single Flex Relay/ACR/LVD is suitable for marine vessels, recreational vehicles, work trucks, off-road vehicles, specialty vehicles, and other mobile electrical systems requiring dependable high-current battery switching and power management.
Key Specifications:
| Weight | 1.11 lbs |
|---|---|
| Dimensions | Length: 6 in Width: 5 in Height: 3 in |
