Victron Energy Blue Smart IP22 Battery Charger 120V NEMA 5-15 | Bluetooth (Variations)

Description

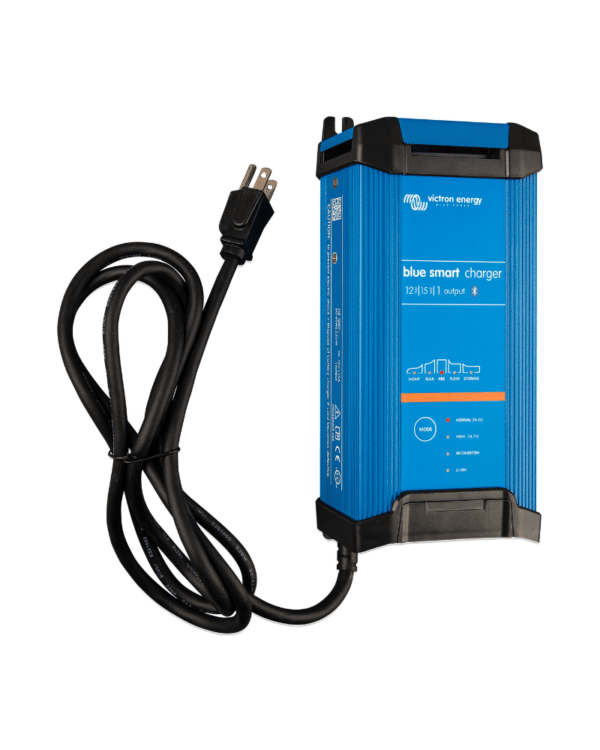

The Blue Smart IP22 Charger is the next generation in professional battery charging from Victron, equipped with bluetooth capabilities, adaptive battery management technology, and a range of models to fit your system.

The Blue Smart Charger series comes with one output or three outputs (depending on the amount of battery banks you want to charge). Multiple chargers can be combined in parallel for higher charge output.

Specifications for 12V models:

• Input voltage range: 100-130 VAC
• Charge current, normal mode: Varies by Model
• Charge voltage ‘absorption’: Normal: 14.4 High: 14.7 Li-ion: 14.2
• Charge voltage ‘float’: Normal: 13.8 High: 13.8 Li-ion: 13.5
• Charge voltage ‘storage’: Normal: 13.2 High: 13.2 Li-ion: 13.5
• Weight: Varies by Model
• Dimensions (h x w x d): Varies by Model

Double the values above for 24V

Additional information

Downloads

• Datasheet
• Manual
