$259.32

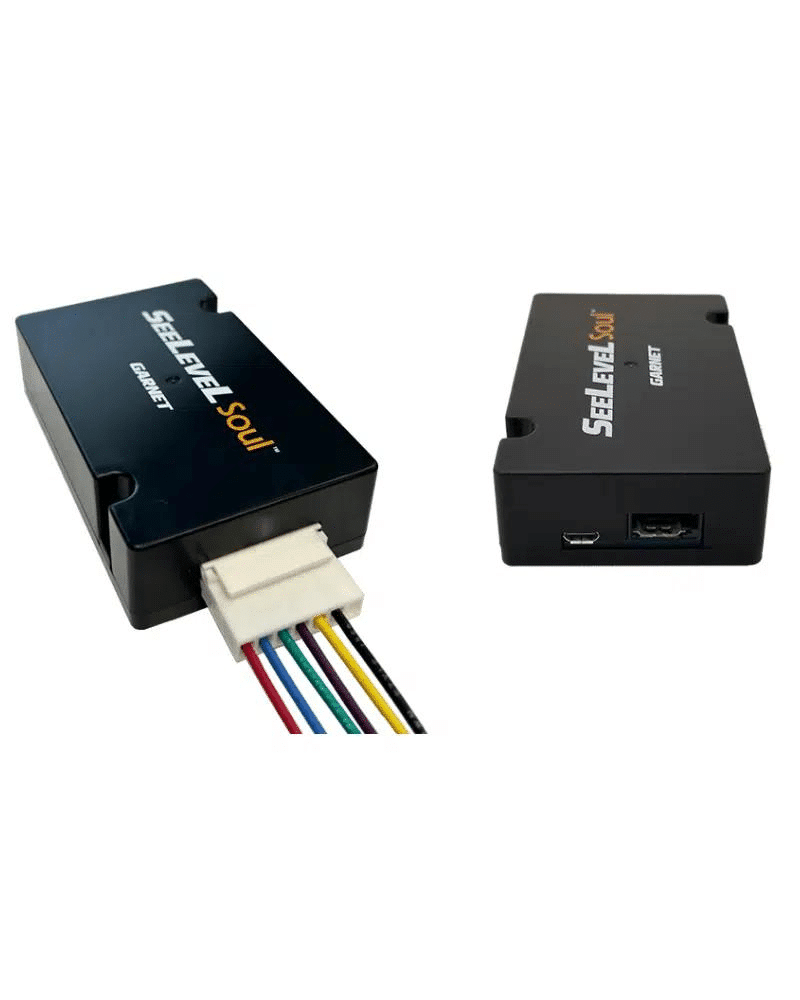

The SeeLeveL Soul (708-RVC H) is a Data Link Module that collects tank level information from the SeeLeveL senders and transmits it to a multiplex system through the RV-C bus. With no visible display, it is designed to be concealed inside the RV so OEMs can avoid using up valuable wall or cabinet space.
-
Monitoring Capabilities
Up to 7 water tanks can be monitored using the Soul. To measure taller tanks, each one can be double stacked. On the RV-C bus, the 7 tanks are listed as Fresh, Grey, Black, Fresh 2, Grey 2, Black 2, and Grey 3. As a result, the Soul can be configured to accommodate practically any RV tank arrangement. The Soul monitors the water tanks as well as having a specific input for an existing third party LPG tank sensor.
RV-C Interface

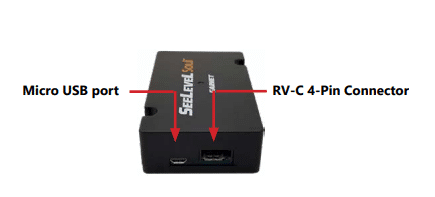

The Soul Data Link Module can connect to the RV-C Bus through the CAN outputs on the pigtail harness or the 4-pin connector traditionally used on other SeeLeveL RV-C displays. OEMs can select the method that best suits their installation process from two connection choices.
Senders
All SeeLeveL Sender Model can be utilized by the Soul Module. The first Fresh, Grey, and Black water tanks are the only ones that can use the 710-JS, 710-ES, and 710-SS senders. The 710-AR and 710-ES2 senders can be programmed for any of the 7 tanks. The sender programming tabs can be clipped so that the Soul will recognize them as a particular tank that maintains common bus wiring, hence lowering the overall amount of wire needed.
